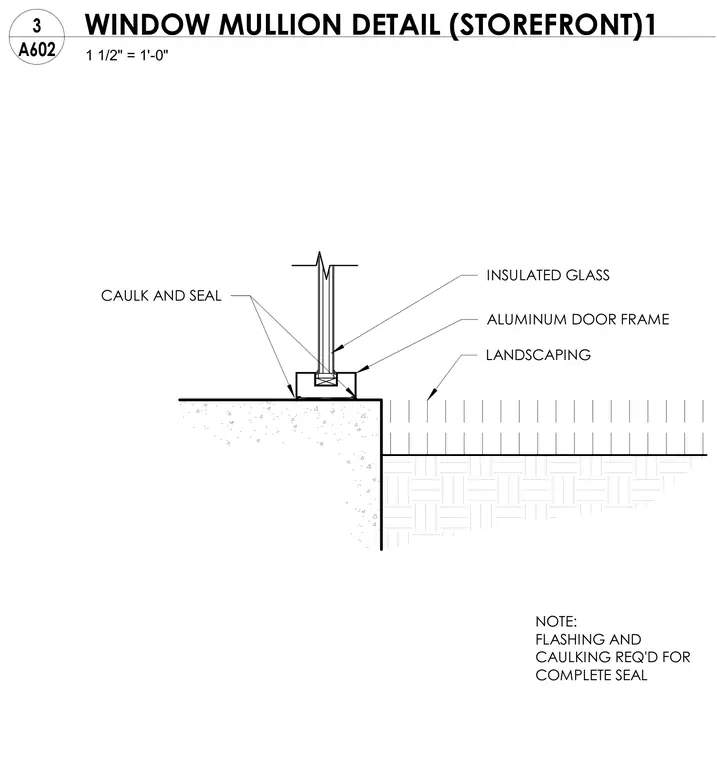

An insulated glass unit sits within an aluminum door frame anchored over a concrete curb. Continuous caulk and seal are applied at the exterior and interior base joints to maintain weatherproofing. Flashing and caulking are required for a complete seal adjacent to the exterior landscaping.
INSULATED GLASS ALUMINUM DOOR FRAME CAULK AND SEAL LANDSCAPING NOTE: FLASHING AND CAULKING REQ'D FOR COMPLETE SEAL 1 1/2" = 1'-0" A602 3 WINDOW MULLION DETAIL (STOREFRONT)1
