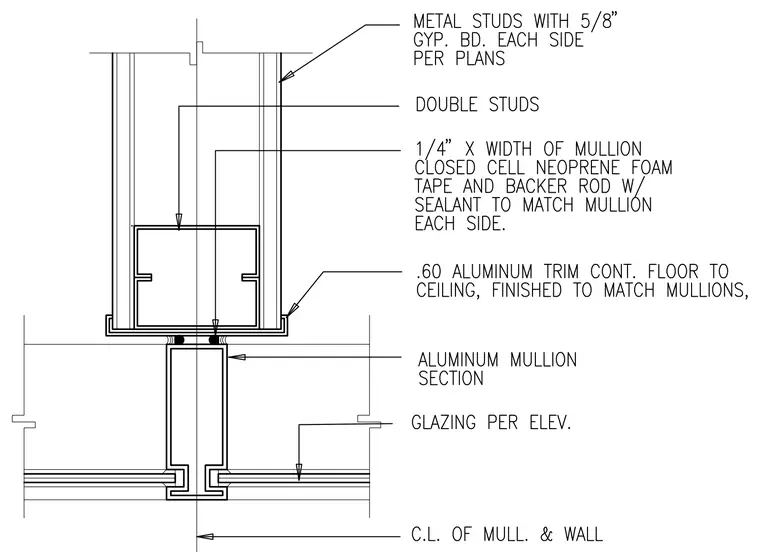

Metal studs framed with five-eighths inch gypsum board on each side terminate at a double stud arrangement abutting the storefront assembly. An aluminum mullion section aligns with the partition centerline, sealed with closed cell neoprene foam tape, backer rod, and sealant on each side. A continuous zero-point-six-zero aluminum trim piece spans floor to ceiling, finished to match the mullions. Glazing is provided per elevations.
