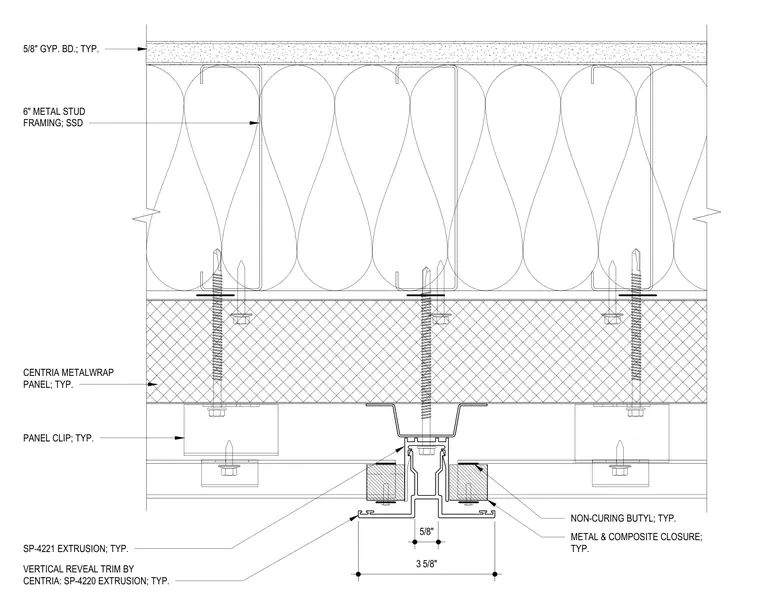

This vertical reveal assembly features Centria MetalWrap panels fastened over six-inch cold-formed metal stud framing with an interior layer of five-eighths-inch gypsum board. Panel clips and self-drilling screws secure the exterior panels while accommodating thermal movement. A Centria SP-4220 vertical reveal trim extrusion integrates with an SP-4221 extrusion at the joint, backed by non-curing butyl sealant and metal and composite closures.
PANEL CLIP; TYP. METAL & COMPOSITE CLOSURE; TYP. NON-CURING BUTYL; TYP. SP-4221 EXTRUSION; TYP. VERTICAL REVEAL TRIM BY CENTRIA: SP-4220 EXTRUSION; TYP. 5/8" 3 5/8" CENTRIA METALWRAP PANEL; TYP. 6" METAL STUD FRAMING; SSD 5/8" GYP. BD.; TYP.
