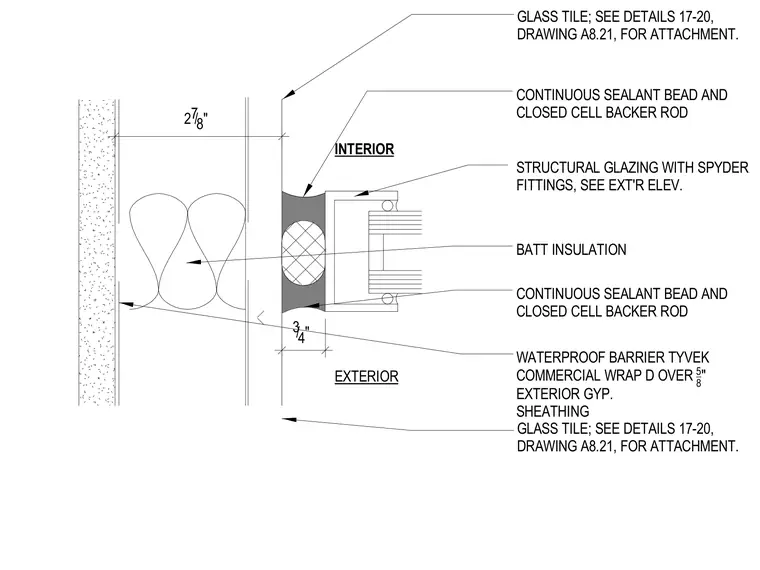

The structural glass assembly connects at the jamb using structural glazing with spyder fittings, sealed on both interior and exterior sides with a continuous sealant bead and closed-cell backer rod. A waterproof barrier of Tyvek Commercial Wrap D is installed over five-eighths inch exterior gypsum sheathing. Batt insulation fills the cavity behind the wall buildup. Glass tile finishes are attached per details 17 through 20 on drawing A8.21.
CONTINUOUS SEALANT BEAD AND CLOSED CELL BACKER ROD STRUCTURAL GLAZING WITH SPYDER FITTINGS, SEE EXT'R ELEV. CONTINUOUS SEALANT BEAD AND CLOSED CELL BACKER ROD INTERIOR EXTERIOR WATERPROOF BARRIER TYVEK COMMERCIAL WRAP D OVER 5_ 8 " EXTERIOR GYP. SHEATHING GLASS TILE; SEE DETAILS 17-20, DRAWING A8.21, FOR ATTACHMENT. BATT INSULATION GLASS TILE; SEE DETAILS 17-20, DRAWING A8.21, FOR ATTACHMENT. 3/4" 2 7 /8"
