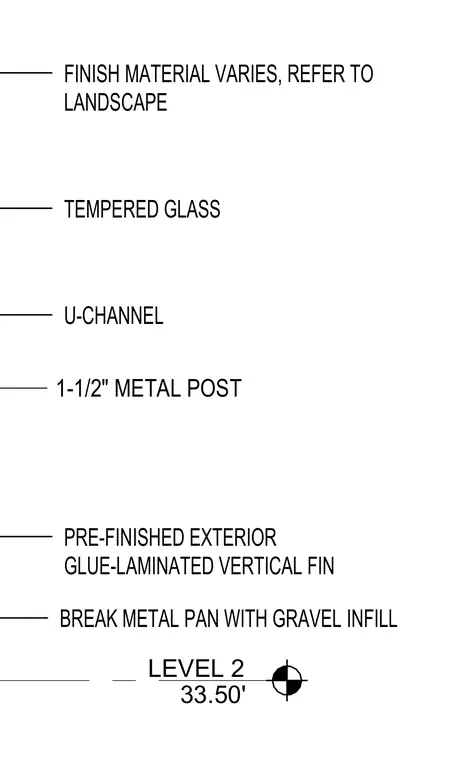

A guardrail assembly is situated at level 2 elevation 33.50 feet. The system incorporates tempered glass secured within a U-channel and supported by a one-and-a-half-inch metal post. A pre-finished exterior glue-laminated vertical fin provides structural support and aesthetic framing. Below, a break metal pan filled with gravel accommodates drainage or ballast, adjacent to variable finish materials specified per landscape plans.
LEVEL 2 33.50' TEMPERED GLASS U-CHANNEL BREAK METAL PAN WITH GRAVEL INFILL PRE-FINISHED EXTERIOR GLUE-LAMINATED VERTICAL FIN FINISH MATERIAL VARIES, REFER TO LANDSCAPE 1-1/2" METAL POST
