Architectural · A-HB2YV

Curtain Wall Sill at Concrete Foundation

Materials

Elements

Walls Windows Curtain Walls Floors / Slabs Foundations / Footings Waterproofing / Flashing

About this detail

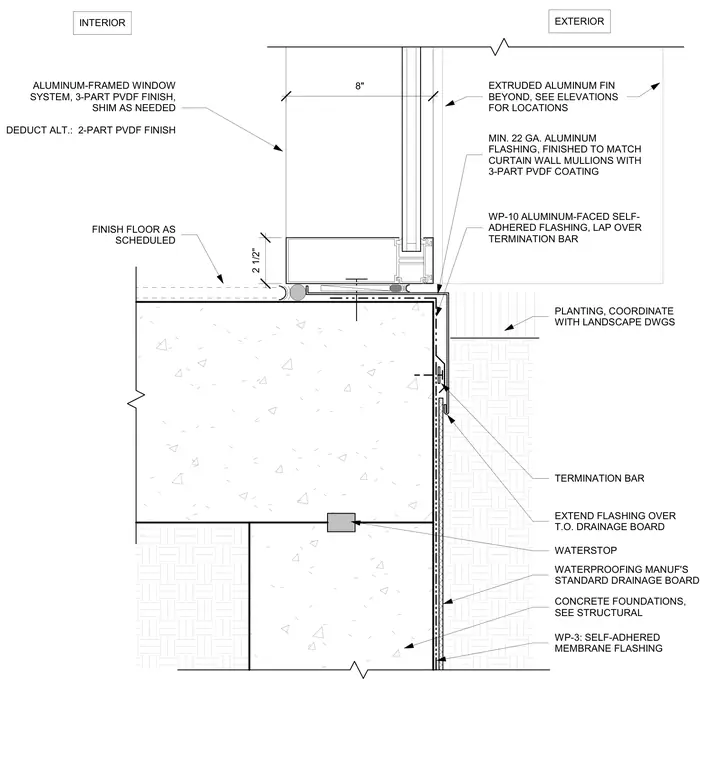

An aluminum-framed window system bears on a finish floor as scheduled over concrete foundations, shimmed as needed with a deduct alternate 2-part PVDF finish available. Minimum 22 gauge aluminum flashing with a 3-part PVDF coating matches the curtain wall mullions and laps over a termination bar above WP-10 aluminum-faced self-adhered flashing. A manufacturer's standard drainage board is installed against the foundation wall over WP-3 self-adhered membrane flashing and a waterstop, with flashing extending over the top of the drainage board. An 8-inch extruded aluminum fin extends beyond the exterior face, and adjacent planting is coordinated with landscape drawings.
