Architectural · A-HAW7B

Tile Base and Transition Strip Detail at Wall and Floor

Materials

Elements

Walls Partitions Floors / Slabs Waterproofing / Flashing

About this detail

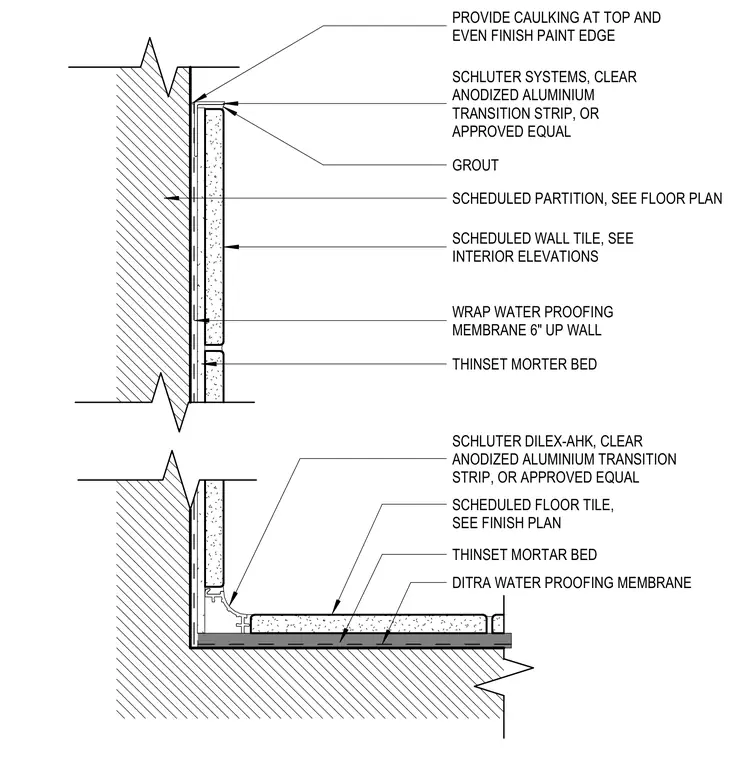

Scheduled wall tile is installed over a thinset mortar bed on a scheduled partition wall, with waterproofing membrane wrapped six inches up the wall. A Schluter Dilex-AHK clear anodized aluminum transition strip finishes the inside corner between the floor and wall tiles. Floor tile is set in thinset mortar over a Schluter Ditra waterproofing membrane above the substrate. A clear anodized aluminum transition strip caps the top edge of the wall tile with caulking and an even finish paint edge.
