This interior partition assembly consists of three-and-five-eighths-inch cold-formed metal framing faced with five-eighths-inch gypsum board on each side, resulting in a total wall thickness of four-and-seven-eighths inches. A felt liner is installed on the partition as provided by the mechanical subcontractor. Performance requirements and mechanical coordination are specifically noted for the mechanical scope.

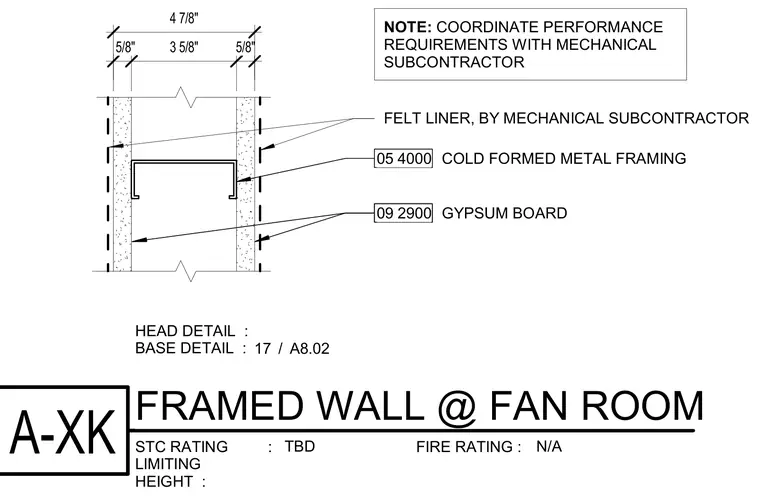

5/8" 3 5/8" 5/8" 05 4000 COLD FORMED METAL FRAMING 4 7/8" 09 2900 GYPSUM BOARD STC RATING : FIRE RATING : LIMITING HEIGHT : HEAD DETAIL : BASE DETAIL : A-XK FRAMED WALL @ FAN ROOM TBD N/A 09 2900 GYPSUM BOARD NOTE: COORDINATE PERFORMANCE REQUIREMENTS WITH MECHANICAL SUBCONTRACTOR / 17 A8.02 FELT LINER, BY MECHANICAL SUBCONTRACTOR
