Extended floor or ground surface edge protection requires a height of thirty-eight inches maximum and thirty-four inches minimum above the finished surface. The horizontal extension must measure twelve inches minimum from the vertical barrier elements.

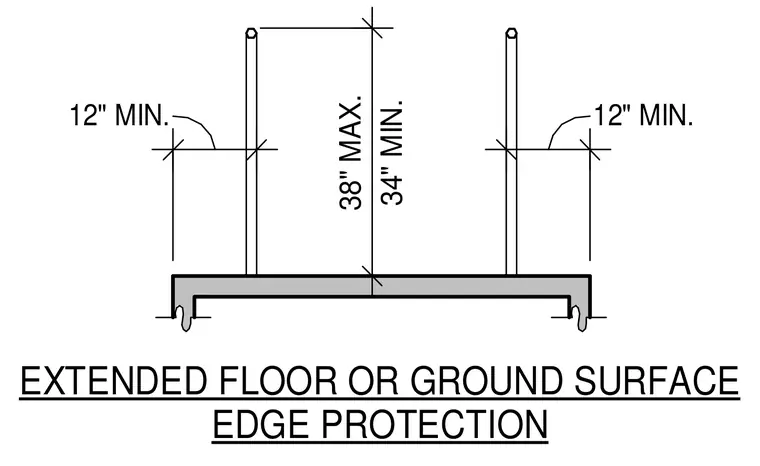

38" MAX. 34" MIN. EXTENDED FLOOR OR GROUND SURFACE EDGE PROTECTION 12" MIN. 12" MIN.
