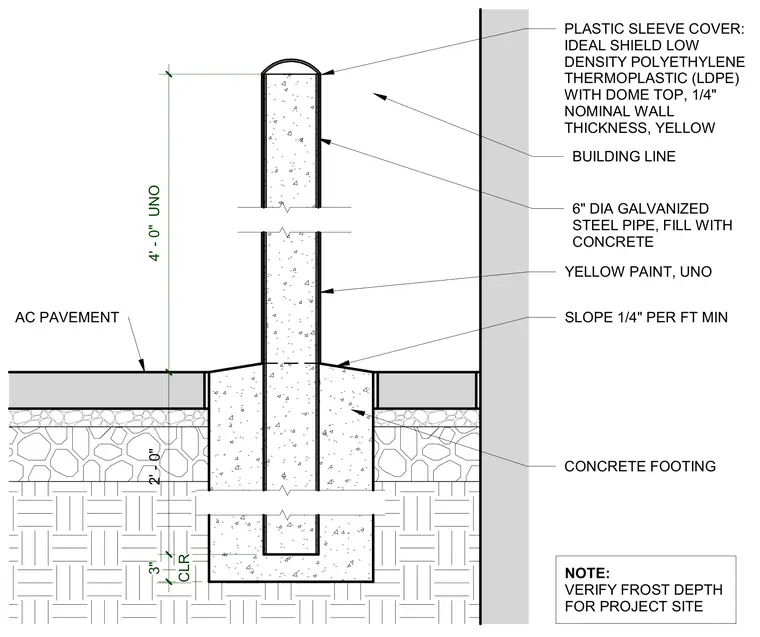

A six-inch diameter galvanized steel pipe is filled with concrete and finished with yellow paint unless noted otherwise. A low-density polyethylene thermoplastic sleeve cover with a dome top and one-quarter inch nominal wall thickness fits over the pipe. The assembly is supported by a concrete footing set into the subgrade below the asphalt concrete pavement, which slopes outward at one-quarter inch per foot minimum. Frost depth must be verified for the project site.
NOTE: VERIFY FROST DEPTH FOR PROJECT SITE PLASTIC SLEEVE COVER: IDEAL SHIELD LOW DENSITY POLYETHYLENE THERMOPLASTIC (LDPE) WITH DOME TOP, 1/4" NOMINAL WALL THICKNESS, YELLOW 6" DIA GALVANIZED STEEL PIPE, FILL WITH CONCRETE YELLOW PAINT, UNO SLOPE 1/4" PER FT MIN CONCRETE FOOTING AC PAVEMENT BUILDING LINE 4' - 0" UNO CLR 3" 2' - 0"
