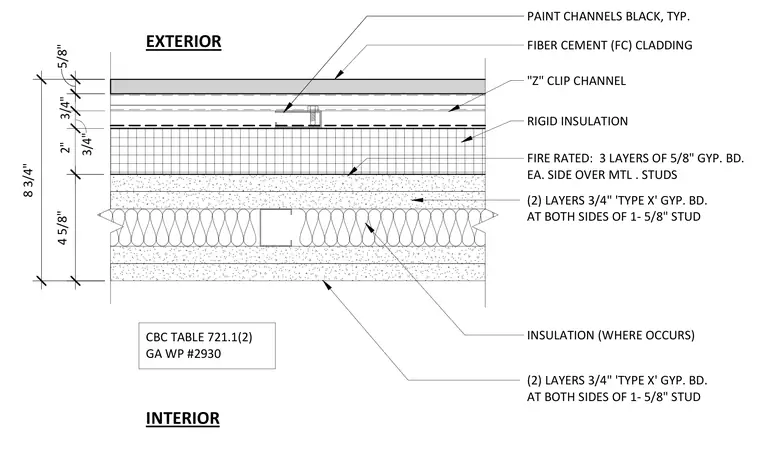

This fire-rated exterior wall assembly features exterior fiber cement cladding mounted over metal Z-clip channels and rigid insulation. The structural backing consists of metal studs faced with three layers of five-eighths-inch gypsum board on each side. An interior partition layer incorporates two layers of three-quarter-inch Type X gypsum board on both sides of one-and-five-eighths-inch studs with interior insulation where required. Channels are painted black throughout, and the assembly complies with California Building Code Table 721.1(2) and Gypsum Association Design No. WP #2930.
FIRE RATED: 3 LAYERS OF 5/8" GYP. BD. EA. SIDE OVER MTL . STUDS 3/4" 3/4" 2" FIBER CEMENT (FC) CLADDING EXTERIOR INTERIOR "Z" CLIP CHANNEL RIGID INSULATION 5/8" INSULATION (WHERE OCCURS) CBC TABLE 721.1(2) GA WP #2930 (2) LAYERS 3/4" 'TYPE X' GYP. BD. AT BOTH SIDES OF 1- 5/8" STUD (2) LAYERS 3/4" 'TYPE X' GYP. BD. AT BOTH SIDES OF 1- 5/8" STUD 8 3/4" 4 5/8" PAINT CHANNELS BLACK, TYP.
