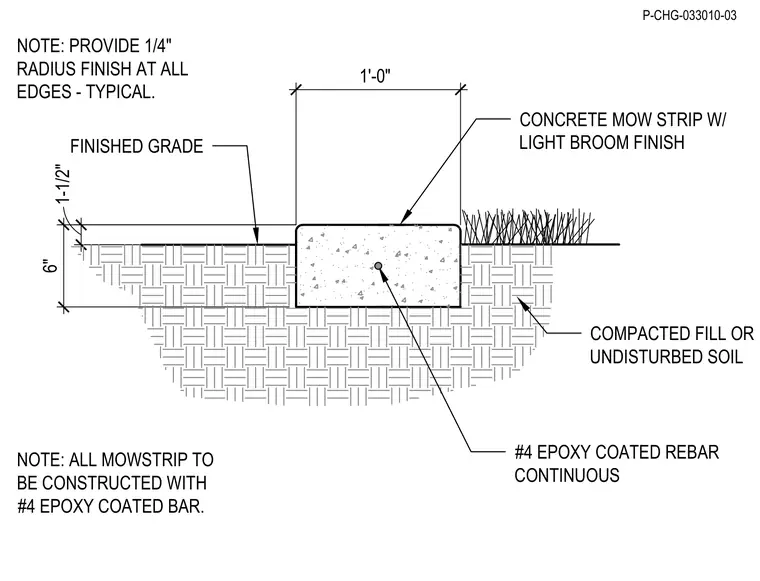

A reinforced concrete mow strip measures twelve inches wide by six inches deep, set flush with the finished grade over compacted fill or undisturbed soil. A single continuous number four epoxy-coated rebar runs longitudinally through the center of the concrete section. All exposed edges feature a typical one-quarter inch radius finish, and the top surface receives a light broom finish.
1'-0" 6" 1-1/2" NOTE: PROVIDE 1/4" RADIUS FINISH AT ALL EDGES - TYPICAL. COMPACTED FILL OR UNDISTURBED SOIL FINISHED GRADE CONCRETE MOW STRIP W/ LIGHT BROOM FINISH #4 EPOXY COATED REBAR CONTINUOUS NOTE: ALL MOWSTRIP TO BE CONSTRUCTED WITH #4 EPOXY COATED BAR. P-CHG-033010-03
