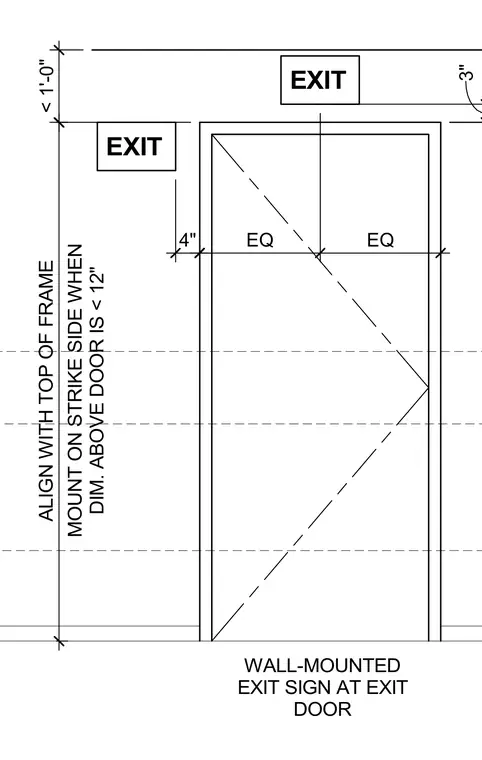

Wall-mounted exit signs are positioned centered above the door frame when vertical clearance exceeds twelve inches. When the dimension above the door is less than twelve inches, the exit sign is mounted on the strike side aligned with the top of the frame. Equal spacing dimensions govern the centered overhead alignment.
EXIT EXIT MOUNT ON STRIKE SIDE WHEN DIM. ABOVE DOOR IS < 12" WALL-MOUNTED EXIT SIGN AT EXIT DOOR EQ EQ 4" 7 ALIGN WITH TOP OF FRAME < 1'-0" 3"
