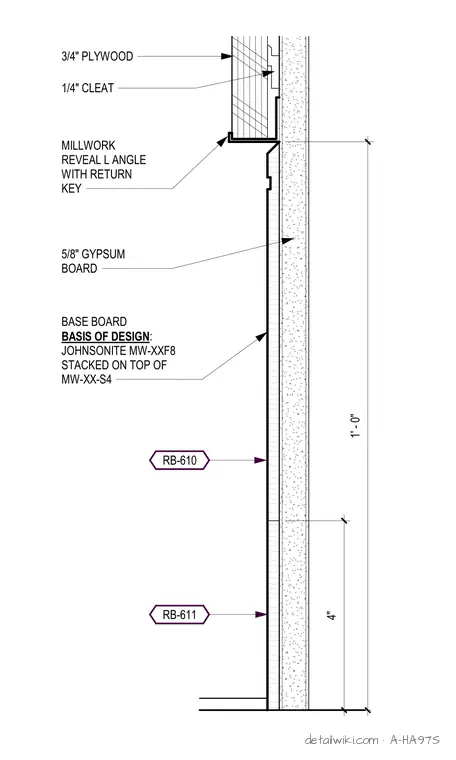

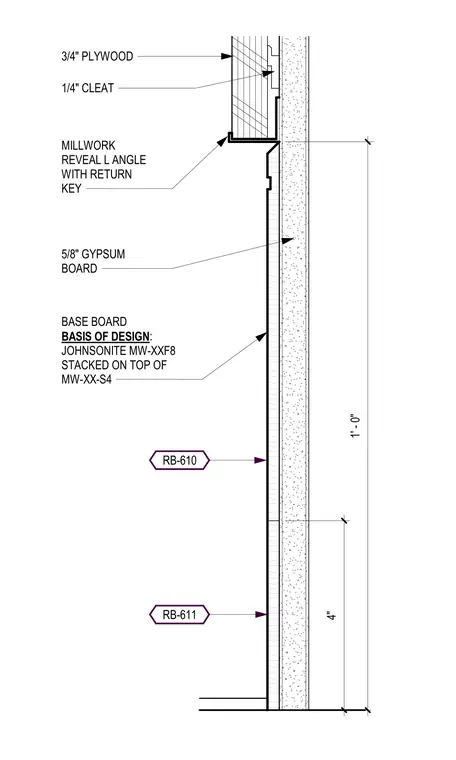

The assembly features a three-quarter inch plywood substrate secured with a one-quarter inch cleat, finished with a millwork reveal L-angle with a return key. Below this, a five-eighths inch gypsum board wall surface receives a stacked base board installation. The basis of design for the base board consists of Johnsonite MW-XXF8 stacked on top of MW-XX-S4, with specific profiles identified as RB-610 and RB-611. The total height of the millwork and base assembly is dimensioned at one foot zero inches, with the lower base component measuring four inches in height.
