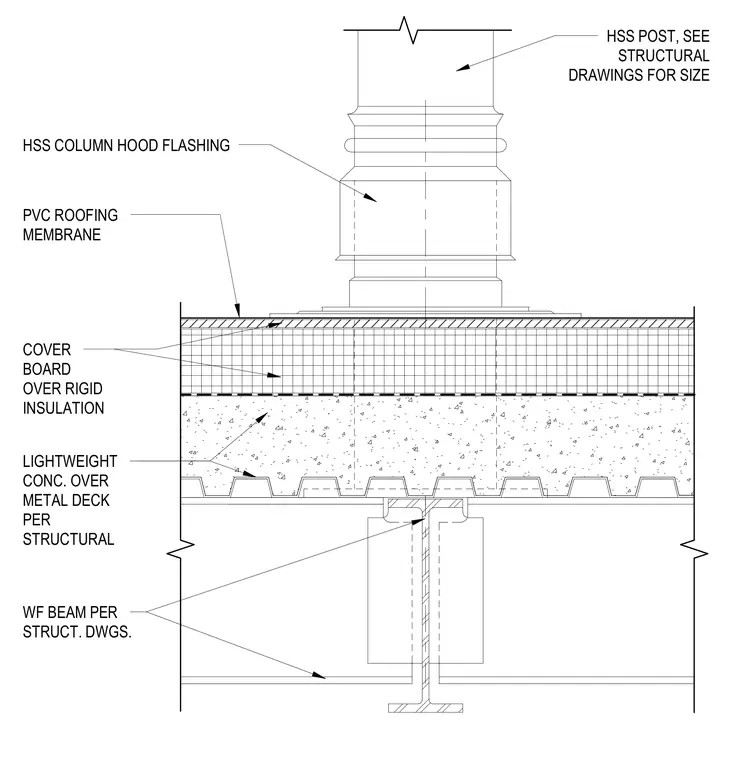

An HSS post penetrates a roof assembly supported by a wide-flange steel beam. A hollow structural section column hood flashing wraps the post base above the waterproofing layer. A PVC roofing membrane covers a cover board and rigid insulation placed over lightweight concrete on metal deck. The underlying wide-flange beam is sized per structural drawings.
PVC ROOFING MEMBRANE HSS POST, SEE STRUCTURAL DRAWINGS FOR SIZE HSS COLUMN HOOD FLASHING COVER BOARD OVER RIGID INSULATION LIGHTWEIGHT CONC. OVER METAL DECK PER STRUCTURAL WF BEAM PER STRUCT. DWGS.
