Architectural · A-HA547

Electrical Device and Switch Mounting Heights at Door Frame

Materials

Elements

About this detail

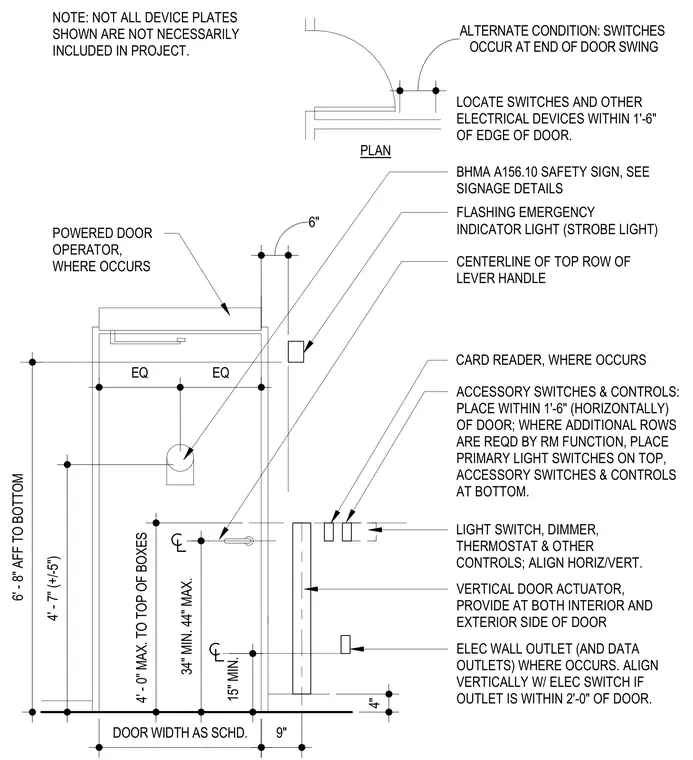

This elevation and plan detail establishes standard mounting heights and horizontal clearances for electrical switches, thermostats, card readers, door actuators, and outlets adjacent to doors. Accessory switches and controls are positioned within one foot six inches horizontally from the edge of the door, placing primary light switches on top and secondary controls at the bottom. Light switches, dimmers, and thermostats align horizontally and vertically, with box tops kept between thirty-four and forty-four inches above finished floor. Electrical outlets align vertically with switches if located within two feet of the door, maintaining a fifteen-inch minimum height to the bottom of the box. Vertical door actuators are provided on both interior and exterior sides, while safety signs, strobe lights, and card readers are located per scheduled dimensions.
