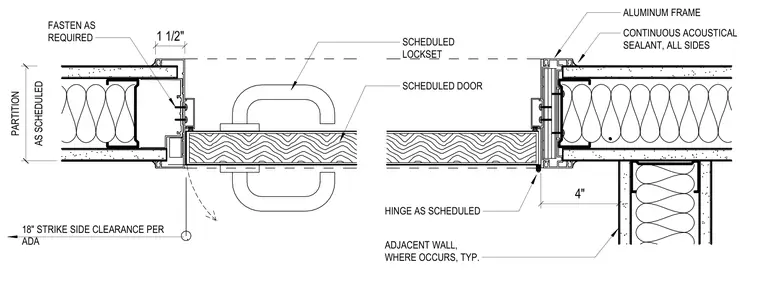

An aluminum frame is anchored to the partition wall as scheduled, with continuous acoustical sealant applied to all sides. A scheduled door is hung with scheduled hinges and secured with a scheduled lockset. Fasteners are installed as required into the frame assembly. An adjacent wall condition maintains a typical clearance of four inches where applicable, and an eighteen-inch strike side clearance is provided per ADA requirements.
CONTINUOUS ACOUSTICAL SEALANT, ALL SIDES AS SCHEDULED PARTITION ALUMINUM FRAME HINGE AS SCHEDULED FASTEN AS REQUIRED 18" STRIKE SIDE CLEARANCE PER ADA . 1 1/2" 4" ADJACENT WALL, WHERE OCCURS, TYP. SCHEDULED LOCKSET SCHEDULED DOOR
