Outlet Box Detail

Materials

Elements

About this detail

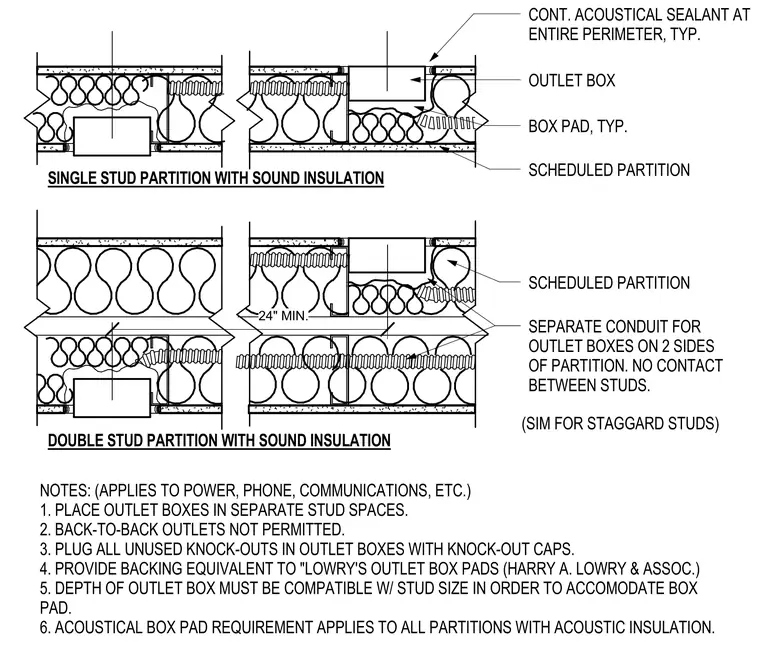

Outlet boxes are installed within scheduled partitions containing sound insulation, requiring continuous acoustical sealant at the entire perimeter. Single stud and double stud partition configurations require boxes placed in separate stud spaces with a minimum twenty-four inch separation or staggered studs, with back-to-back outlets explicitly prohibited. Separate conduits feed outlet boxes on opposite sides of the partition with no contact between studs. Box pads equivalent to Lowry's outlet box pads are provided, with box depth compatible with the stud size to accommodate the pad. All unused knock-outs in outlet boxes are plugged with knock-out caps.
