Architectural · A-H9D5Z

Non-Rated Partition Head at Cross Laminated Timber Floor

Materials

Elements

Partitions Floors / Slabs Decks Insulation

About this detail

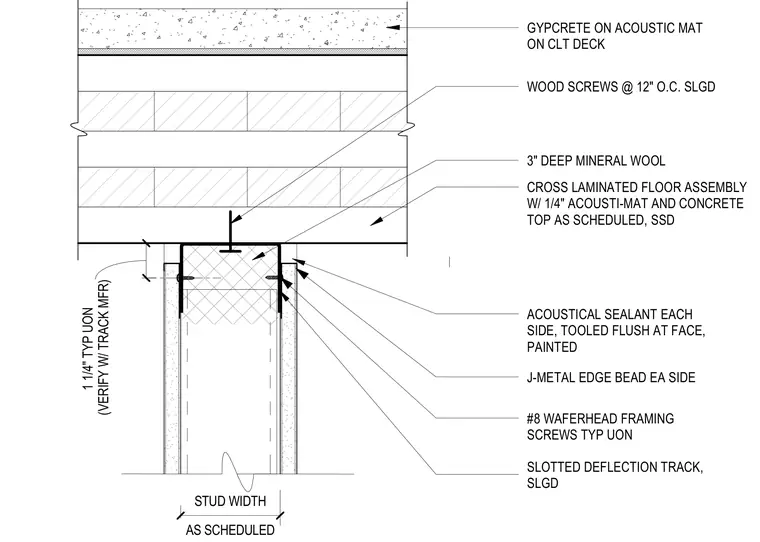

This architectural detail shows a non-rated partition head meeting a cross-laminated timber floor assembly. A slotted deflection track accommodates movement, fastened with number eight waferhead framing screws and three-inch deep mineral wool insulation packed inside. Acoustical sealant is applied to each side, tooled flush at the face, and painted. J-metal edge beads finish the gypsum board on each side. The floor assembly above consists of a concrete topping over a one-quarter-inch acoustic mat on a cross-laminated timber deck.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
