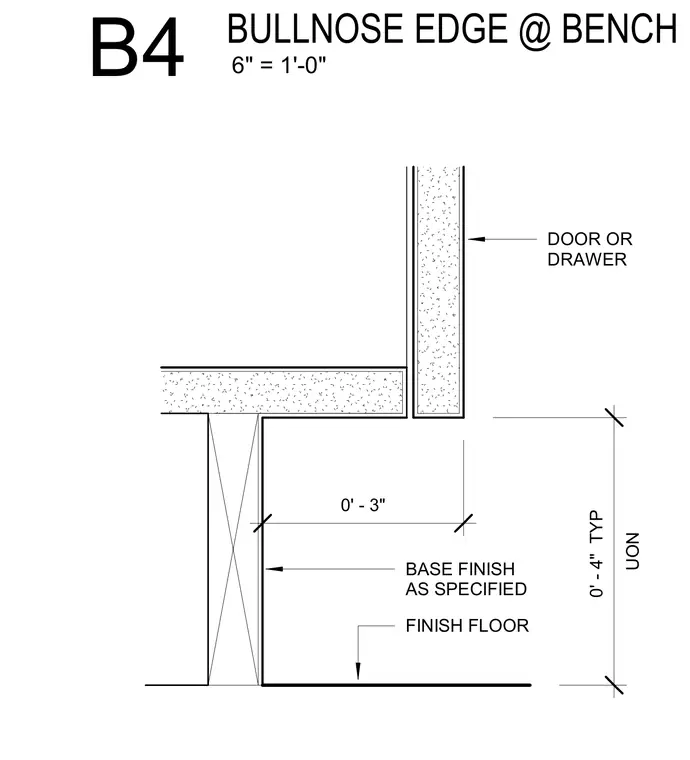

A bullnose edge configuration occurs at a built-in bench. A door or drawer component is positioned above the bench surface. A base finish as specified is applied to the vertical support wall, with a typical recess depth of three inches. The finish floor meets the base of the cabinetry assembly, maintaining a vertical clearance dimension of four inches typical unless otherwise noted.
DOOR OR DRAWER 0' - 3" UON 0' - 4" TYP FINISH FLOOR BASE FINISH AS SPECIFIED 6" = 1'-0" B4 BULLNOSE EDGE @ BENCH
