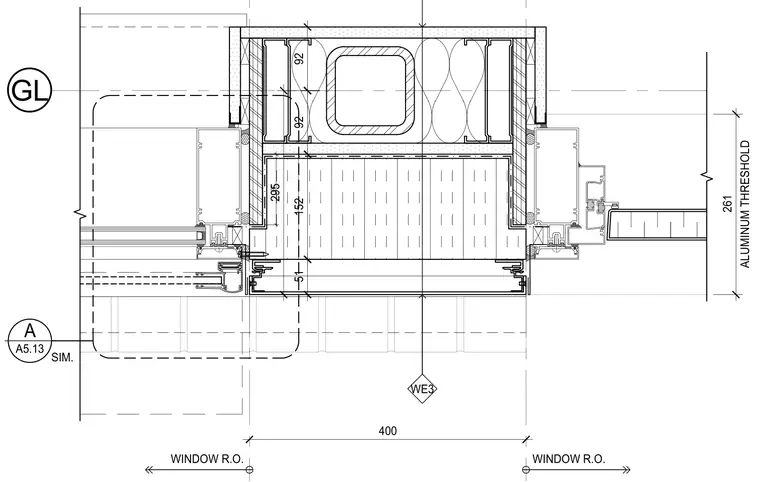

An extruded aluminum threshold sits within the window rough opening, anchored directly to the subfloor assembly. Perimeter sealant joints seal the threshold profile to the adjacent window framing and interior finish components. Dimensions indicate clear spacings across the rough opening width and threshold assembly depth.
WINDOW R.O. WINDOW R.O. WE3 GL 400 92 92 152 51 295 261 ALUMINUM THRESHOLD 102 A A5.13 SIM.
