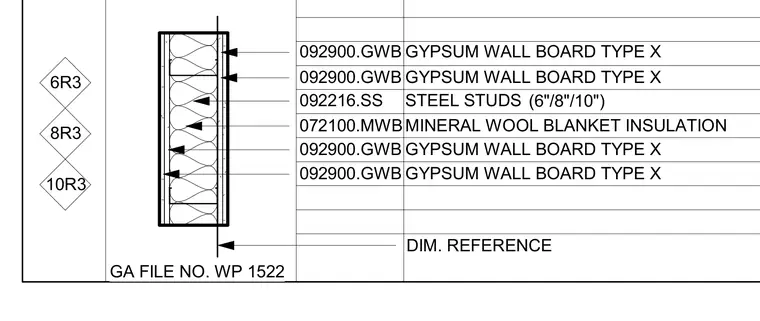

This wall assembly consists of steel studs ranging from six to ten inches in depth, framed with layers of Type X gypsum wall board on both sides. Mineral wool blanket insulation fills the stud cavity. The partition is identified by GA file number WP 1522, referencing standard fire-rated wall configurations.
6R3 8R3 GA FILE NO. WP 1522 DIM. REFERENCE GYPSUM WALL BOARD TYPE X 092900.GWB STEEL STUDS 092216.SS MINERAL WOOL BLANKET INSULATION 072100.MWB GYPSUM WALL BOARD TYPE X 092900.GWB (6"/8"/10") 10R3 GYPSUM WALL BOARD TYPE X 092900.GWB GYPSUM WALL BOARD TYPE X 092900.GWB
