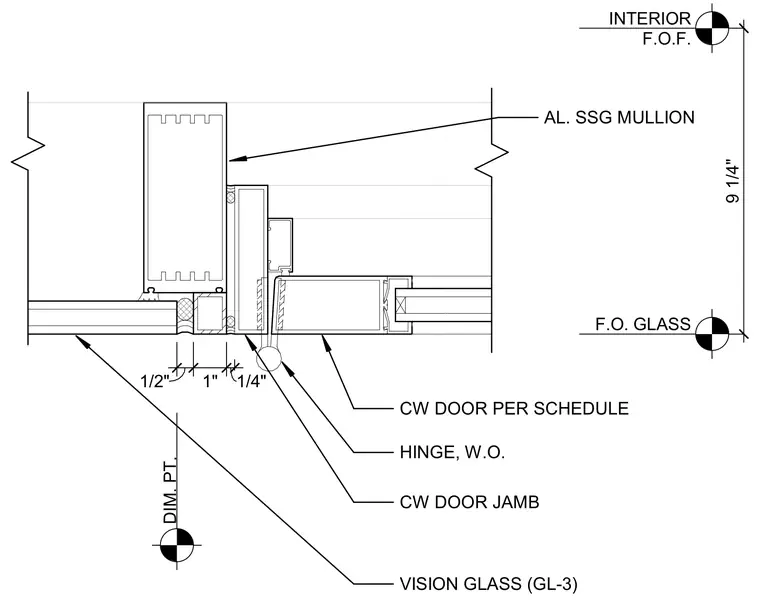

This plan detail shows a curtain wall door jamb adjacent to vision glass and an aluminum structural silicone glazed mullion. The assembly incorporates a door per schedule with a hinge and wide opening specification. Dimension points establish a 9-1/4 inch offset between the interior face of finish and the face of glass, with intermediate clearance dimensions of 1/2 inch, 1 inch, and 1/4 inch.
DIM. PT. F.O. GLASS INTERIOR F.O.F. CW DOOR JAMB 9 1/4" CW DOOR PER SCHEDULE VISION GLASS (GL-3) AL. SSG MULLION 1/2" 1" 1/4" HINGE, W.O.
