An aluminum grating bears upon aluminum beams sized per plan, flanked by concrete walls beyond. An aluminum bent plate measuring 5x3-1/2x1/4 is welded with a 3/16 fillet weld. Additional aluminum bent plates are placed on each side of the expansion joint, maintaining a three-inch gap with a quarter-inch secondary gap. An aluminum L4x4 angle runs along the back side of the beam for structural support. Fasteners and bolts secure the assembly across the 6-inch typical spacing.

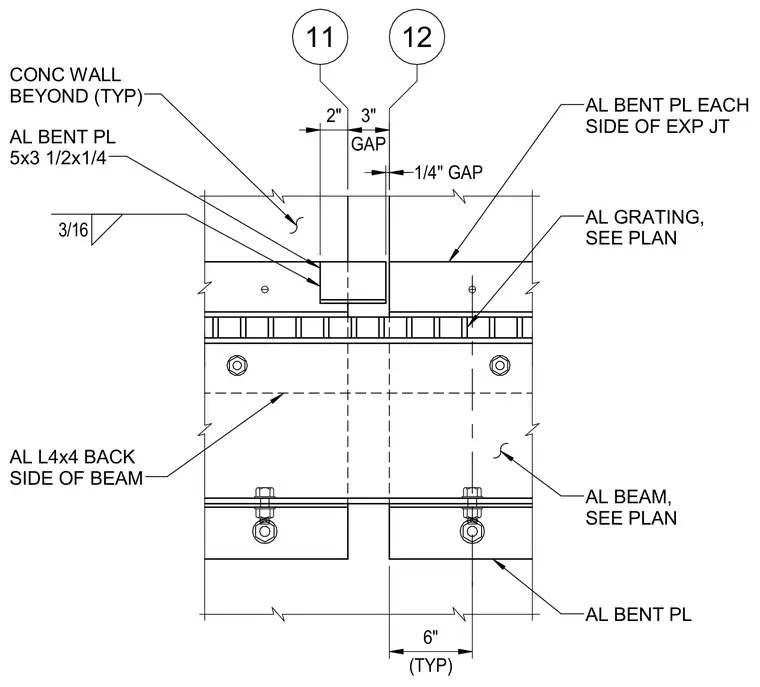

3/16 11 12 (TYP) 6" 2" GAP 3" 1/4" GAP CONC WALL BEYOND (TYP) AL BENT PL 5x3 1/2x1/4 AL L4x4 BACK SIDE OF BEAM AL BENT PL EACH SIDE OF EXP JT AL GRATING, SEE PLAN AL BEAM, SEE PLAN AL BENT PL
