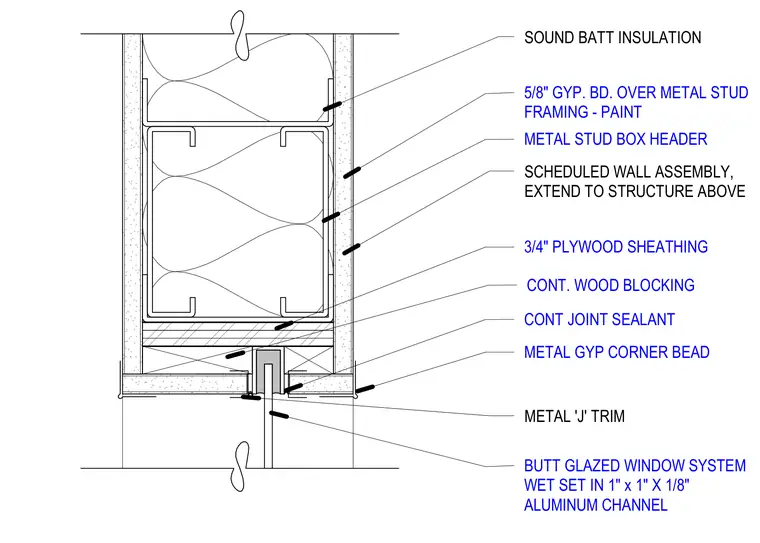

A butt-glazed window system is wet-set in a one-inch by one-inch by one-eighth-inch aluminum channel secured below continuous wood blocking and a metal stud box header. The head detail integrates with a scheduled wall assembly finished with five-eighths-inch gypsum board over metal stud framing, metal gypsum corner beads, and metal J trim. Continuous joint sealant is applied at the interface, and three-quarter-inch plywood sheathing is incorporated above the opening. Sound batt insulation fills the cavity within the metal stud framing extending to the structure above.
SCHEDULED WALL ASSEMBLY, EXTEND TO STRUCTURE ABOVE SOUND BATT INSULATION METAL 'J' TRIM CONT JOINT SEALANT CONT. WOOD BLOCKING METAL STUD BOX HEADER BUTT GLAZED WINDOW SYSTEM WET SET IN 1" x 1" X 1/8" ALUMINUM CHANNEL 5/8" GYP. BD. OVER METAL STUD FRAMING - PAINT METAL GYP CORNER BEAD 3/4" PLYWOOD SHEATHING
