Architectural · A-H85TS

Ventilated Roof Parapet and Gutter Detail

Materials

Steel Cold-formed Steel Stainless Steel Timber / Wood Glass / Glazing Aluminum Metal (misc.)

Elements

Columns Beams Windows Roofs Parapets Decks Waterproofing / Flashing Insulation Drainage Connections / Plates Reinforcing

Connections

Rebar Splice / Development Timber / Mass-Timber Connection

About this detail

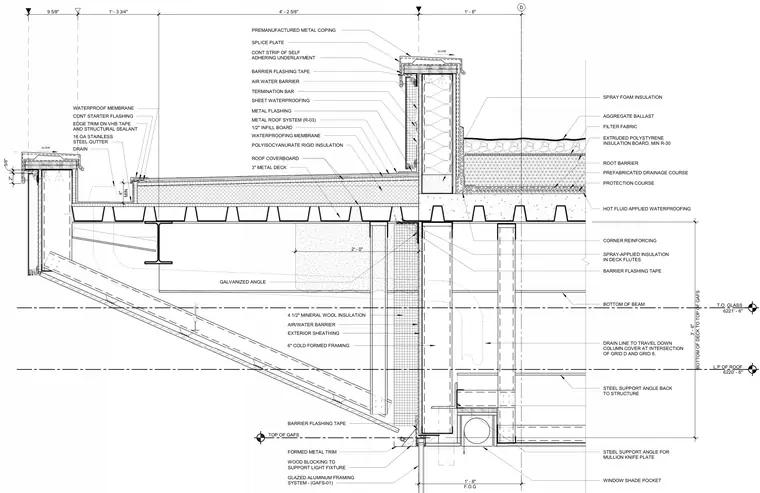

A roof parapet and gutter assembly is supported by a metal deck with polyisocyanurate rigid insulation, roof coverboard, and a waterproofing membrane. The parapet features a premanufactured metal coping with splice plates, continuous self-adhering underlayment, and exterior sheathing backed by six-inch cold-formed framing with four-and-a-half-inch mineral wool insulation. A sixteen-gauge stainless steel gutter is integrated with edge trim on VHB tape, structural sealant, and continuous starter flashing. Below the roof deck, structural steel framing connects to steel support angles and a knife plate for the glazed aluminum framing system. The assembly includes hot fluid-applied waterproofing, a protection course, a prefabricated drainage course, extruded polystyrene insulation board at a minimum of R-30, root barriers, filter fabric, and aggregate ballast.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
