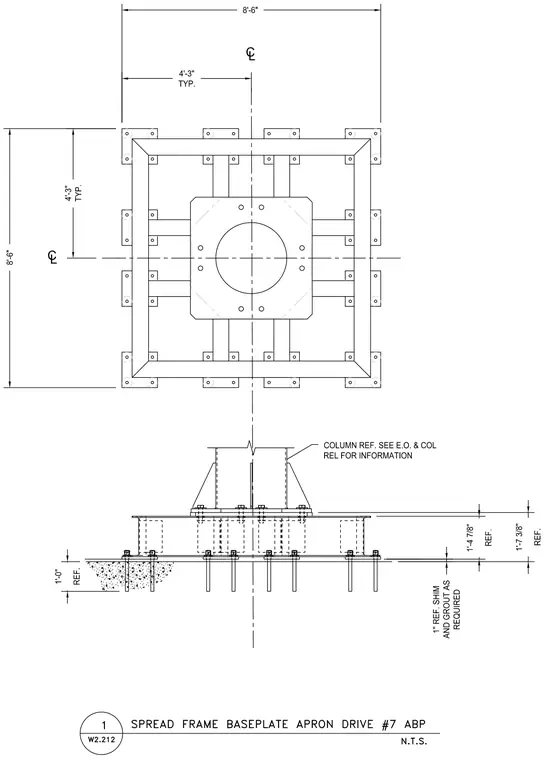

A structural spread frame baseplate assembly for an apron drive column features a multi-tiered structural steel frame anchored with anchor bolts into a concrete foundation. Shim and grout are placed as required beneath the base assembly per the reference dimensions. The column is secured with stiffener plates and connection bolts atop the frame. The overall assembly measures 8 feet 6 inches square in plan with specific reference heights indicated in elevation.
COLUMN REF. SEE E.O. & COL REL FOR INFORMATION 4'-3" TYP. LC 8'-6" 1'-0" REF. 1" REF. SHIM AND GROUT AS REQUIRED 1'-7 3/8" REF. 1'-4 7/8" REF. 4'-3" TYP. 8'-6" LC
