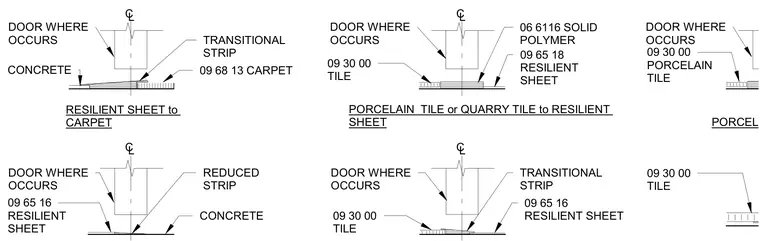

Floor transitions occur beneath doors centered on partitions over concrete substrates, utilizing appropriate transition strips and reducer strips between varying finish materials. Resilient sheet flooring meets carpet using a transitional strip. Porcelain or quarry tile transitions to resilient sheet flooring with a solid polymer threshold piece. Additional transitions accommodate porcelain tile, resilient sheet, and concrete reductions at door centerlines.
CL DOOR WHERE OCCURS CONCRETE 09 68 13 CARPET TRANSITIONAL STRIP RESILIENT SHEET to CARPET 09 65 16 RESILIENT SHEET CONCRETE REDUCED STRIP 09 30 00 TILE 06 6116 SOLID POLYMER 09 65 18 RESILIENT SHEET PORCELAIN TILE or QUARRY TILE to RESILIENT SHEET TRANSITIONAL STRIP 09 30 00 PORCELAIN TILE PORCELAIN TILE to CARPET CL CL CL 09 30 00 TILE DOOR WHERE OCCURS 09 30 00 TILE 09 65 16 RESILIENT SHEET DOOR WHERE OCCURS DOOR WHERE OCCURS DOOR WHERE OCCURS
