Architectural · A-H79K4

Metal Wall Angle and Framing Plan at Angled Wall Intersection

Materials

Steel Timber / Wood Glass / Glazing Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

About this detail

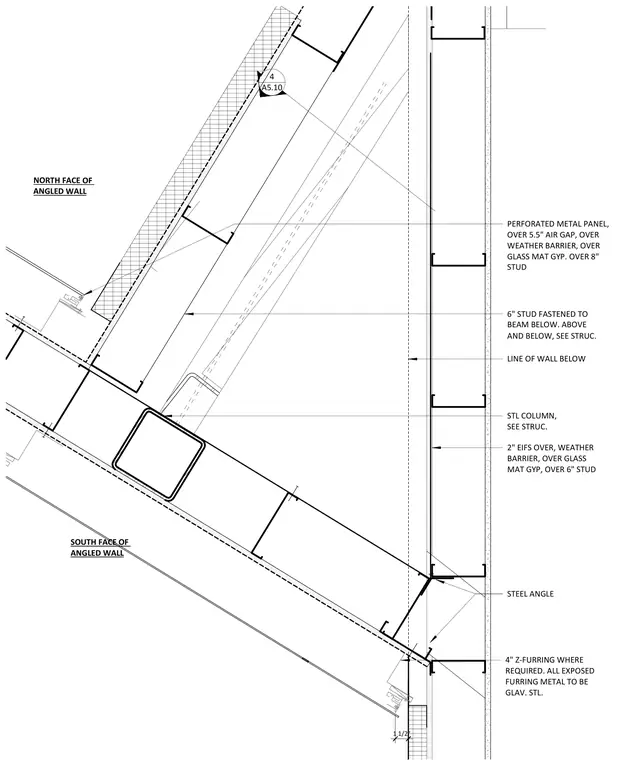

An exterior steel column aligns with a steel angle connection at the intersection of an angled metal stud wall. The north face features a perforated metal panel over a five-and-a-half-inch air gap, weather barrier, glass mat gypsum, and eight-inch studs. The south face incorporates two-inch exterior insulation and finish system over a weather barrier, glass mat gypsum, and six-inch metal studs fastened to the structural beam below. Four-inch galvanized steel z-furring is included where required. All exposed furring metal is galvanized steel.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
