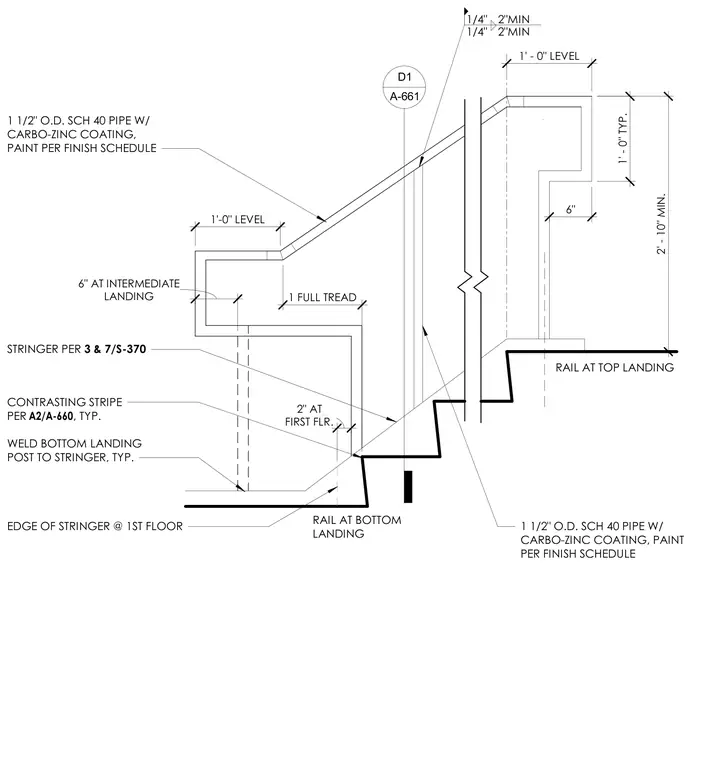

A stair handrail and guardrail assembly constructed with 1-1/2 inch outside diameter Schedule 40 pipe with a Carbo-Zinc coating and finish coat. The bottom landing post is welded directly to the stair stringer, which is sized per structural drawings. The railing stands at a minimum height of 2 feet 10 inches at the bottom landing and top landing, with a contrasting strip applied to full treads. Welds are sized at 1/4 inch with specified minimum clearances.
2' - 10" MIN. RAIL AT BOTTOM LANDING 1 1/2" O.D. SCH 40 PIPE W/ CARBO-ZINC COATING, PAINT PER FINISH SCHEDULE 1 FULL TREAD CONTRASTING STRIPE PER , TYP. A2/A-660 STRINGER PER 3 & 7/S-370 1 1/2" O.D. SCH 40 PIPE W/ CARBO-ZINC COATING, PAINT PER FINISH SCHEDULE WELD BOTTOM LANDING POST TO STRINGER, TYP. 1' - 0" LEVEL 6" 1' - 0" TYP. LANDING 6" AT INTERMEDIATE FIRST FLR. 2" AT 1'-0" LEVEL EDGE OF STRINGER @ 1ST FLOOR RAIL AT TOP LANDING D1 A-661 1/4" 1/4" 2"MIN 2"MIN
