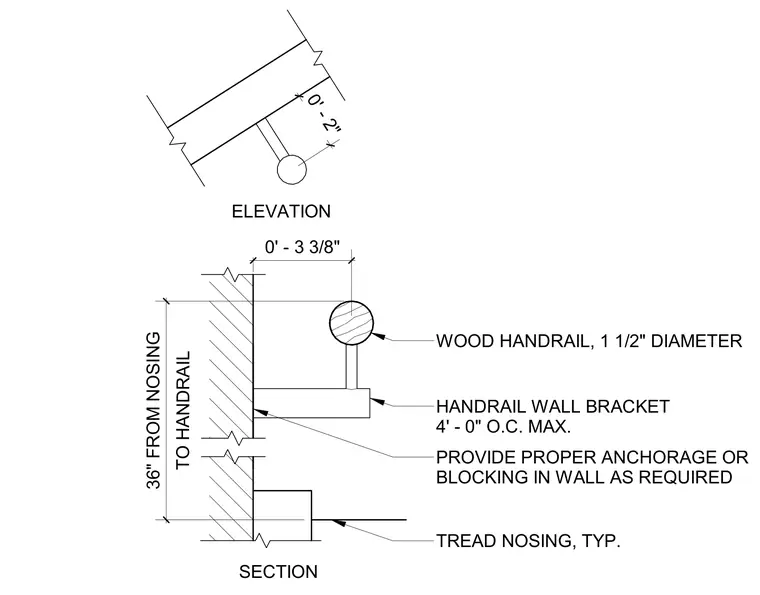

A one-and-one-half-inch diameter wood handrail is secured to the wall with a handrail wall bracket spaced at a maximum of four feet on center. Proper anchorage or blocking is provided in the wall as required for structural support. The handrail is positioned thirty-six inches vertically from the typical stair tread nosing, with a two-inch clearance from the wall surface to the center of the rail.
0' - 3 3/8" PROVIDE PROPER ANCHORAGE OR BLOCKING IN WALL AS REQUIRED HANDRAIL WALL BRACKET 4' - 0" O.C. MAX. WOOD HANDRAIL, 1 1/2" DIAMETER SECTION ELEVATION TREAD NOSING, TYP. TO HANDRAIL 36" FROM NOSING 0' - 2"
