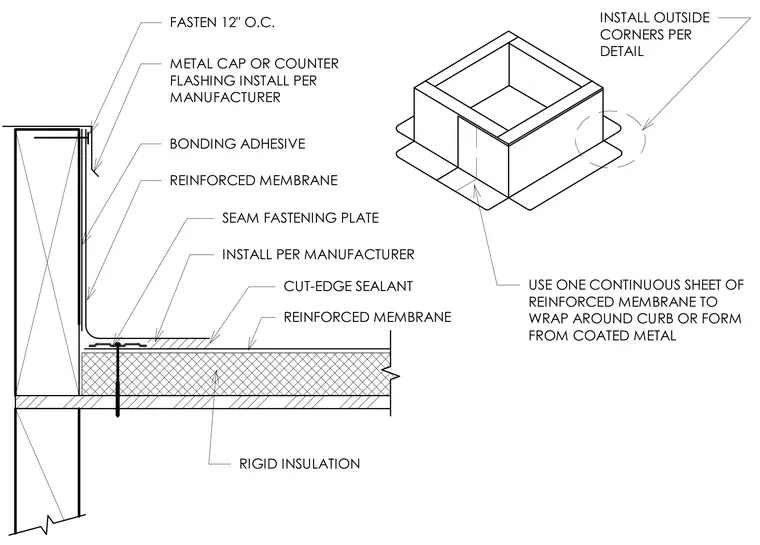

A roof curb waterproofed with a continuous sheet of reinforced membrane wrapped over the curb and secured with a seam fastening plate at the deck. Rigid insulation is installed beneath the roof membrane, and a metal cap or counter flashing is fastened at twelve inches on center along the top of the curb. Cut-edge sealant is applied along the membrane termination, and outside corners are detailed to maintain continuous weather protection.
INSTALL OUTSIDE CORNERS PER DETAIL RIGID INSULATION REINFORCED MEMBRANE CUT-EDGE SEALANT INSTALL PER MANUFACTURER SEAM FASTENING PLATE REINFORCED MEMBRANE BONDING ADHESIVE METAL CAP OR COUNTER FLASHING INSTALL PER MANUFACTURER FASTEN 12" O.C. USE ONE CONTINUOUS SHEET OF REINFORCED MEMBRANE TO WRAP AROUND CURB OR FORM FROM COATED METAL
