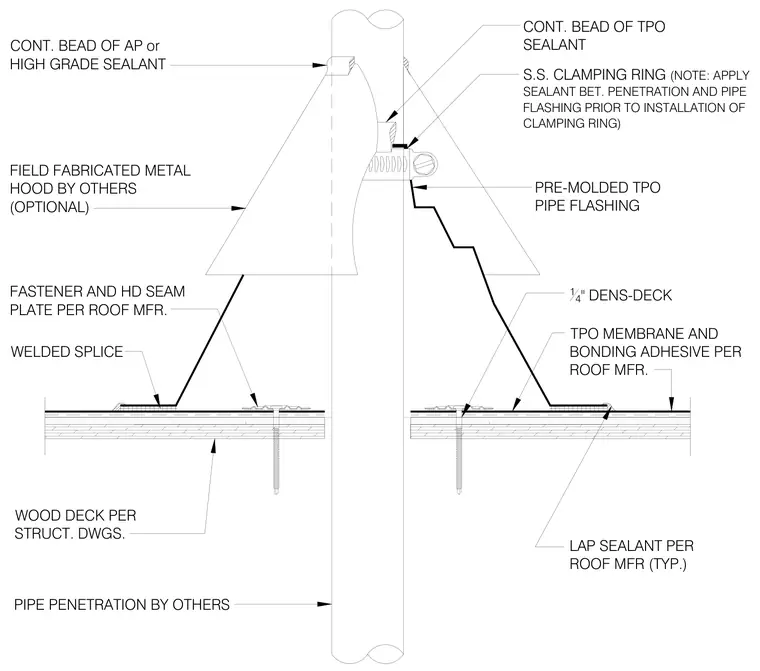

A pipe penetration passes through a roof assembly consisting of a wood deck and one-quarter inch Dens-Deck cover board. A TPO membrane is adhered to the roof surface using bonding adhesive per the manufacturer requirements. A pre-molded TPO pipe flashing fits over the penetration, secured at the base with fasteners and heavy-duty seam plates with a welded splice. A continuous bead of TPO sealant is applied at the top of the flashing beneath a stainless steel clamping ring, with sealant applied between the pipe and flashing prior to installation. A continuous bead of adhesive or high-grade sealant seals the top of an optional field-fabricated metal hood.
PRE-MOLDED TPO PIPE FLASHING CONT. BEAD OF AP or HIGH GRADE SEALANT WOOD DECK PER STRUCT. DWGS. CONT. BEAD OF TPO SEALANT S.S. CLAMPING RING (NOTE: APPLY SEALANT BET. PENETRATION AND PIPE FLASHING PRIOR TO INSTALLATION OF CLAMPING RING) PIPE PENETRATION BY OTHERS TPO MEMBRANE AND BONDING ADHESIVE PER ROOF MFR. WELDED SPLICE FASTENER AND HD SEAM PLATE PER ROOF MFR. FIELD FABRICATED METAL HOOD BY OTHERS (OPTIONAL) LAP SEALANT PER ROOF MFR (TYP.) 14 " DENS-DECK
