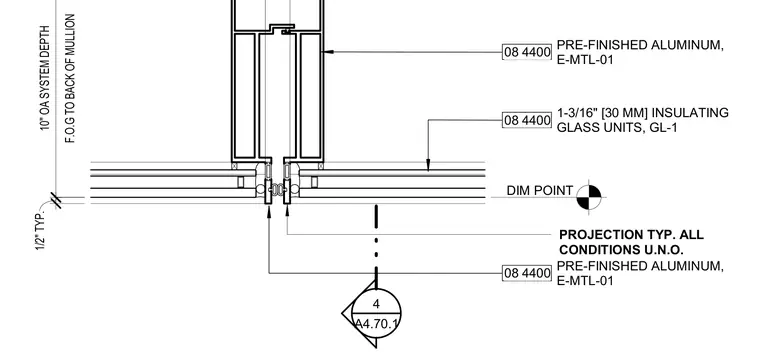

Pre-finished aluminum framing members anchor the 1-3/16-inch insulating glass units designated as GL-1. The system features a 10-inch overall system depth measured from the face of glass to the back of the mullion. A typical 1/2-inch projection applies to all conditions unless noted otherwise. A dimension point is established at the exterior glass plane.
08 4400 PRE-FINISHED ALUMINUM, E-MTL-01 08 4400 1-3/16" [30 MM] INSULATING GLASS UNITS, GL-1 F.O.G TO BACK OF MULLION 10" OA SYSTEM DEPTH 1/2" TYP. PROJECTION TYP. ALL CONDITIONS U.N.O. 08 4400 PRE-FINISHED ALUMINUM, E-MTL-01 4 A4.70.1 DIM POINT
