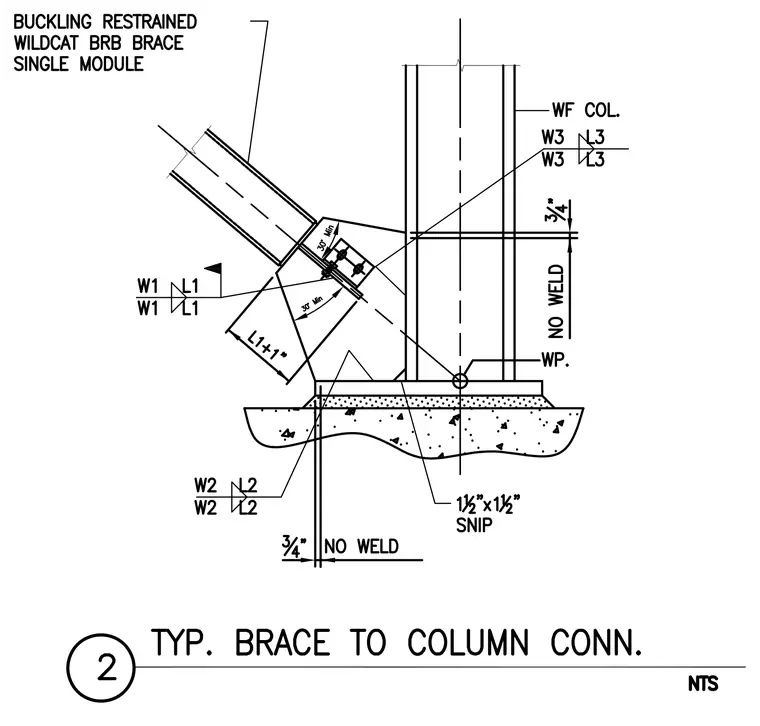

A Wildcat buckling-restrained brace single module connects to a wide-flange column and base plate via a gusset plate assembly. The gusset plate features a 1-1/2-inch by 1-1/2-inch snip and specific weld designations labeled W1, W2, and W3 with corresponding lengths L1, L2, and L3. A three-quarters-inch clearance is maintained with designated no-weld zones near the base and column flange intersection. The work point (WP) is located at the intersection of the column centerline and base plate, with specific 30-degree minimum angles detailed at the gusset transition.
