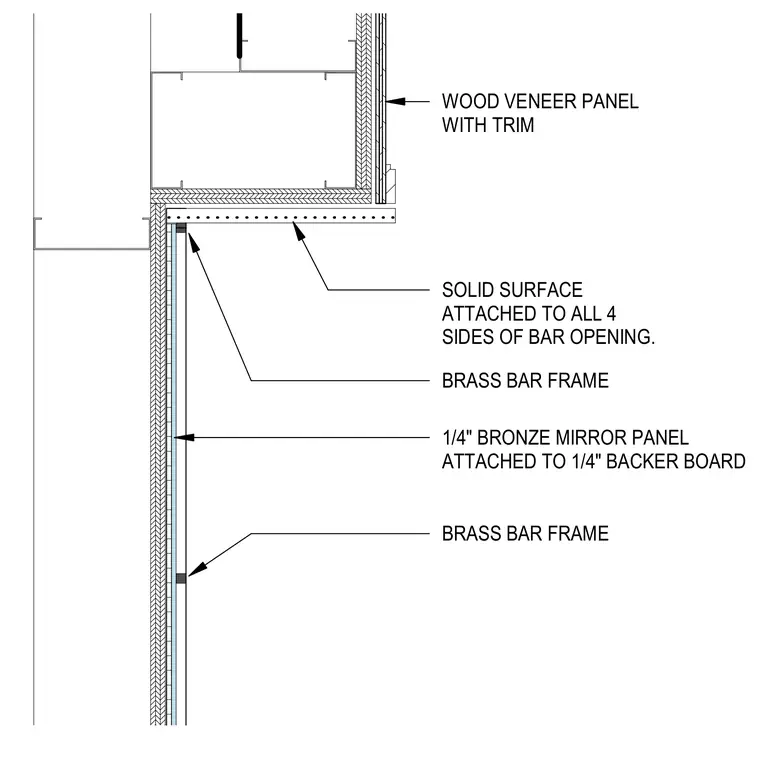

A wood veneer panel with trim finishes the upper wall assembly above a solid surface header attached to all four sides of the bar opening. A quarter-inch bronze mirror panel is mounted to a quarter-inch backer board and trimmed with brass bar framing elements. The assembly integrates decorative metal framing members with architectural millwork and mirror finishes around the bar opening.
SOLID SURFACE ATTACHED TO ALL 4 SIDES OF BAR OPENING. 1/4" BRONZE MIRROR PANEL ATTACHED TO 1/4" BACKER BOARD BRASS BAR FRAME WOOD VENEER PANEL WITH TRIM BRASS BAR FRAME
