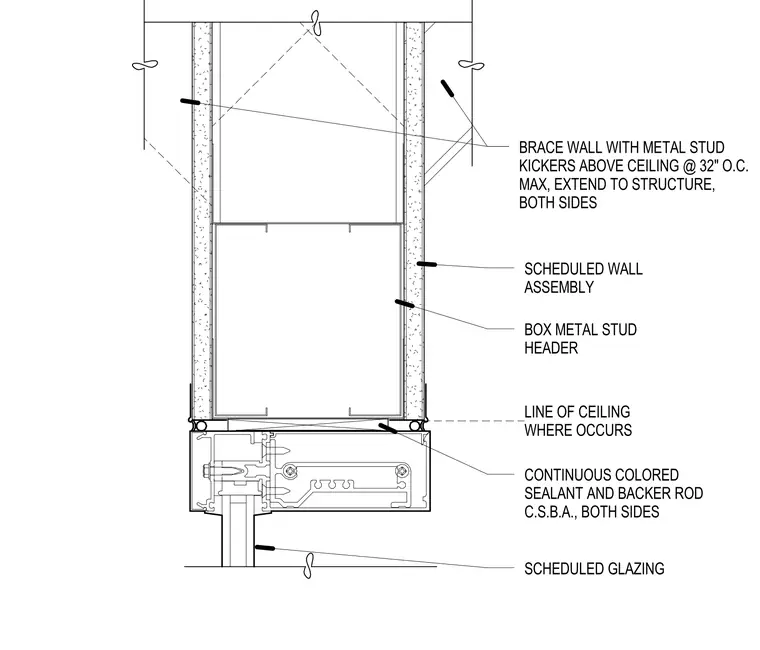

An interior curtain wall head assembly is anchored below a scheduled wall assembly supported by a box metal stud header. The wall is braced above the ceiling by metal stud kickers spaced at thirty-two inches on center maximum, extending to the structure on both sides. The head condition incorporates scheduled glazing sealed with continuous colored sealant and backer rod on both sides at the ceiling line.
SCHEDULED GLAZING CONTINUOUS COLORED SEALANT AND BACKER ROD C.S.B.A., BOTH SIDES BOX METAL STUD HEADER SCHEDULED WALL ASSEMBLY BRACE WALL WITH METAL STUD KICKERS ABOVE CEILING @ 32" O.C. MAX, EXTEND TO STRUCTURE, BOTH SIDES LINE OF CEILING WHERE OCCURS
