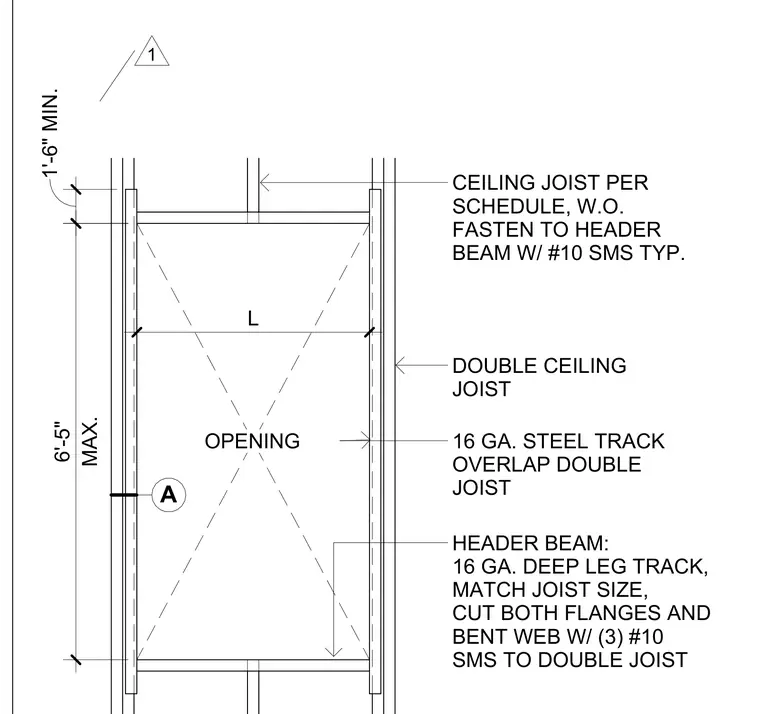

The ceiling opening is framed with double ceiling joists spaced per schedule and tied together with standard fasteners. A header beam constructed from sixteen gauge deep leg track matches the joist size and features cut flanges with a bent web secured by three number ten sheet metal screws to the double joist. Ceiling joists fasten to the header beam with typical number ten sheet metal screws. The framed opening accommodates a maximum span of six feet five inches and a minimum of one foot six inches.
DOUBLE CEILING JOIST 16 GA. STEEL TRACK OVERLAP DOUBLE JOIST HEADER BEAM: 16 GA. DEEP LEG TRACK, MATCH JOIST SIZE, CUT BOTH FLANGES AND BENT WEB W/ (3) #10 SMS TO DOUBLE JOIST CEILING JOIST PER SCHEDULE, W.O. FASTEN TO HEADER BEAM W/ #10 SMS TYP. OPENING A MAX. 6'-5" L 1'-6" MIN. 1
