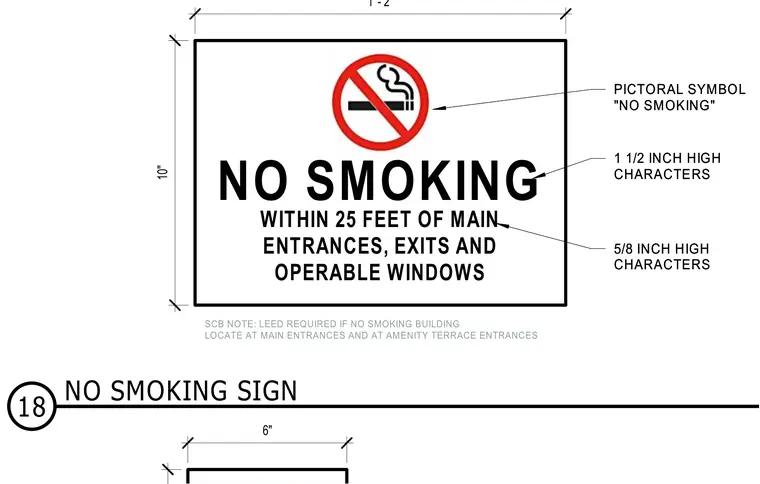

A no smoking sign with dimensions measuring 1 foot 2 inches wide by 10 inches high includes a pictorial no smoking symbol. The sign features 1 1/2 inch high characters for the main heading and 5/8 inch high characters for secondary text. Notes specify placement at main entrances, exits, and operable windows within 25 feet to satisfy LEED requirements.
6" 1' - 2" 10" PICTORAL SYMBOL "NO SMOKING" SCB NOTE: LEED REQUIRED IF NO SMOKING BUILDING. LOCATE AT MAIN ENTRANCES AND AT AMENITY TERRACE ENTRANCES NO SMOKING WITHIN 25 FEET OF MAIN ENTRANCES, EXITS AND OPERABLE WINDOWS 5/8 INCH HIGH CHARACTERS 1 1/2 INCH HIGH CHARACTERS PICTORAL SYMBOL "NO SMOKING" 5/8 INCH HIGH CHARACTERS 1 1/2 INCH HIGH CHARACTERS 18 NO SMOKING SIGN
