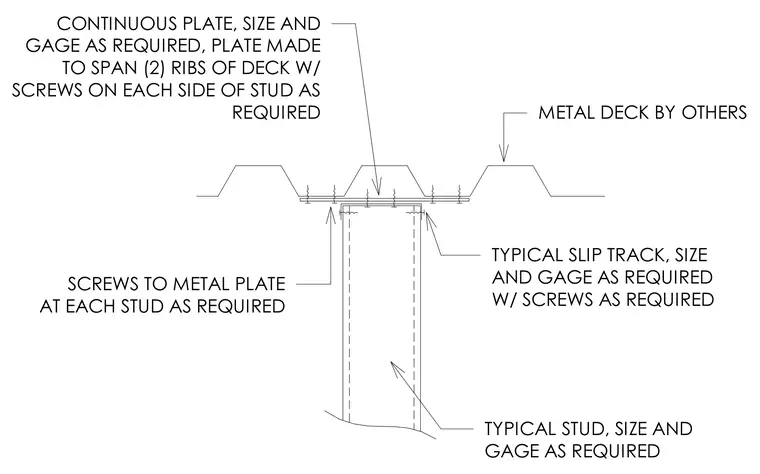

The cold-formed steel stud connects to the overhead metal deck using a typical slip track sized and gauged as required. A continuous plate spans two ribs of the metal deck and fastens to the slip track with screws on each side of the stud. Additional screws secure the metal plate to each stud. The metal deck itself is provided by others.
METAL DECK BY OTHERS TYPICAL SLIP TRACK, SIZE AND GAGE AS REQUIRED W/ SCREWS AS REQUIRED TYPICAL STUD, SIZE AND GAGE AS REQUIRED SCREWS TO METAL PLATE AT EACH STUD AS REQUIRED CONTINUOUS PLATE, SIZE AND GAGE AS REQUIRED, PLATE MADE TO SPAN (2) RIBS OF DECK W/ SCREWS ON EACH SIDE OF STUD AS REQUIRED
