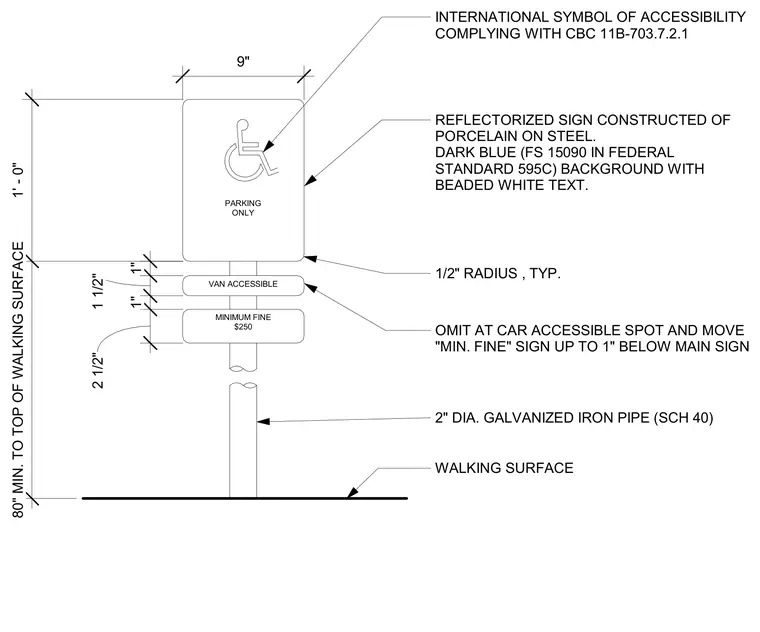

An accessible parking sign assembly consists of a reflectorized sign constructed of porcelain on steel with a dark blue background and beaded white text. The main sign measures nine inches wide by one foot high with typical one-half inch radii corners. Additional panels for van accessibility and minimum fine notices are mounted below the main sign with specified vertical clearances. The assembly is supported by a two-inch diameter schedule forty galvanized iron pipe mounted above the walking surface, maintaining a minimum height of eighty inches to the top of the walking surface.
9" 80" MIN. TO TOP OF WALKING SURFACE 1' - 0" 1" 1 1/2" 1" 2 1/2" PARKING ONLY VAN ACCESSIBLE MINIMUM FINE $250 INTERNATIONAL SYMBOL OF ACCESSIBILITY COMPLYING WITH CBC 11B-703.7.2.1 REFLECTORIZED SIGN CONSTRUCTED OF PORCELAIN ON STEEL. DARK BLUE (FS 15090 IN FEDERAL STANDARD 595C) BACKGROUND WITH BEADED WHITE TEXT. 1/2" RADIUS , TYP. OMIT AT CAR ACCESSIBLE SPOT AND MOVE "MIN. FINE" SIGN UP TO 1" BELOW MAIN SIGN 2" DIA. GALVANIZED IRON PIPE (SCH 40) WALKING SURFACE
