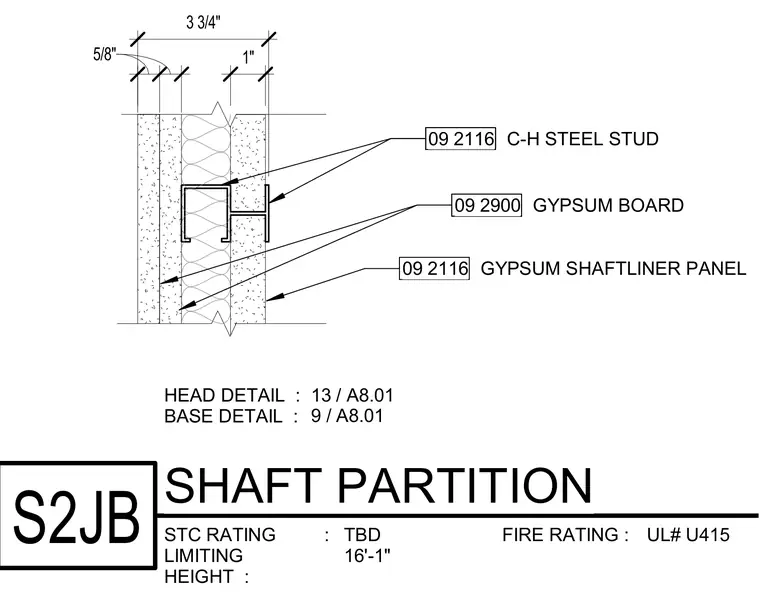

A three-and-three-quarter-inch C-H steel stud forms the core of the shaft wall framing. One-inch gypsum shaftliner panels fit between the framing flanges and receive a layer of five-eighth-inch gypsum board on the exterior. The opposing side is finished with a one-inch layer of gypsum board. The complete wall assembly is designated under UL number U415 with a limiting height of sixteen feet one inch.
09 2116 GYPSUM SHAFTLINER PANEL 5/8" 5/8" STC RATING : FIRE RATING : LIMITING HEIGHT : HEAD DETAIL : BASE DETAIL : S2JB SHAFT PARTITION TBD UL# U415 16'-1" 13 / A8.01 9 / A8.01 09 2900 GYPSUM BOARD 09 2116 C-H STEEL STUD 3 3/4" 09 2116 C-H STEEL STUD 09 2900 GYPSUM BOARD 1"
