Lighting Control Wiring Diagram

About this detail

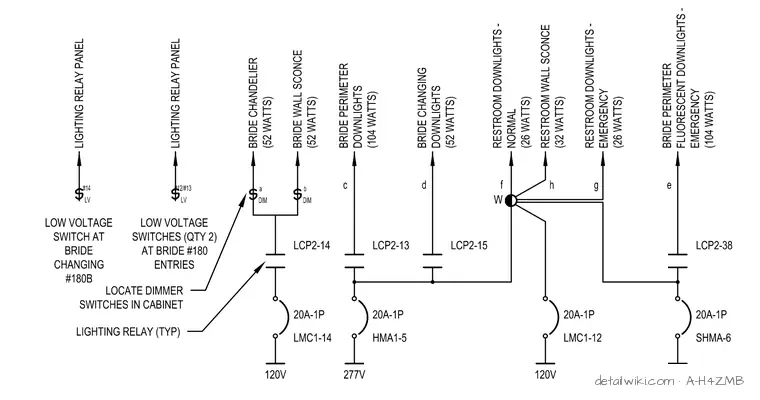

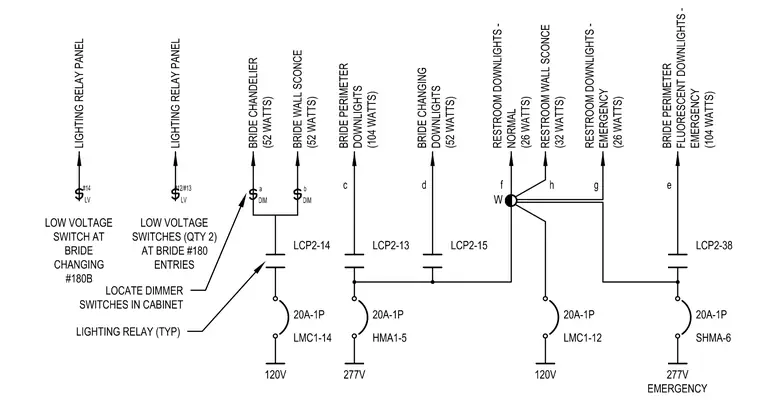

This lighting control wiring diagram details the electrical connections between lighting relay panels, low voltage switches, dimmers, and specific lighting fixtures including bride chandeliers, wall sconces, perimeter downlights, and restroom downlights. Low voltage switch legs route from switches at entries and changing rooms to lighting relays. Circuit feeds connect through twenty-amp single-pole breakers tied to panels such as LCP2-14, LCP2-13, LCP2-15, and LCP2-38, operating on both one hundred twenty-volt and two hundred seventy-volt emergency systems. Dimmers are located in cabinets with designated switch controls.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
