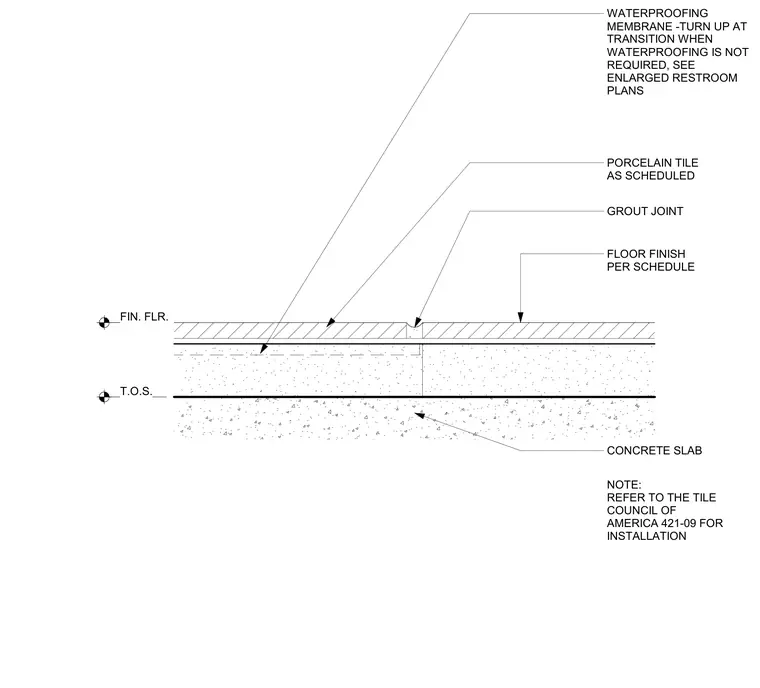

Porcelain tile finishes are set over a concrete slab with a waterproofing membrane turned up at the transition. A grout joint separates the tile finishes. Installation follows Tile Council of America 421-09 standards.
FIN. FLR. T.O.S. GROUT JOINT PORCELAIN TILE AS SCHEDULED FLOOR FINISH PER SCHEDULE WATERPROOFING MEMBRANE -TURN UP AT TRANSITION WHEN WATERPROOFING IS NOT REQUIRED, SEE ENLARGED RESTROOM PLANS CONCRETE SLAB NOTE: REFER TO THE TILE COUNCIL OF AMERICA 421-09 FOR INSTALLATION
