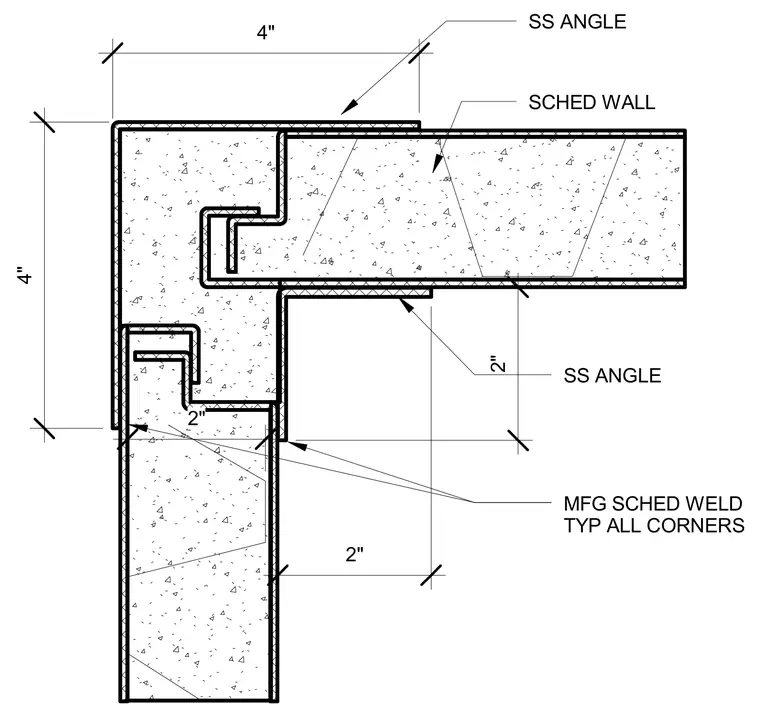

This plan detail shows the corner assembly for a scheduled wall with stainless steel angles. The two intersecting wall panels are joined at the exterior corner with a continuous stainless steel angle and secured using manufacturer scheduled welds at all corners. The intersecting walls feature embedded interlocking channel profiles.
