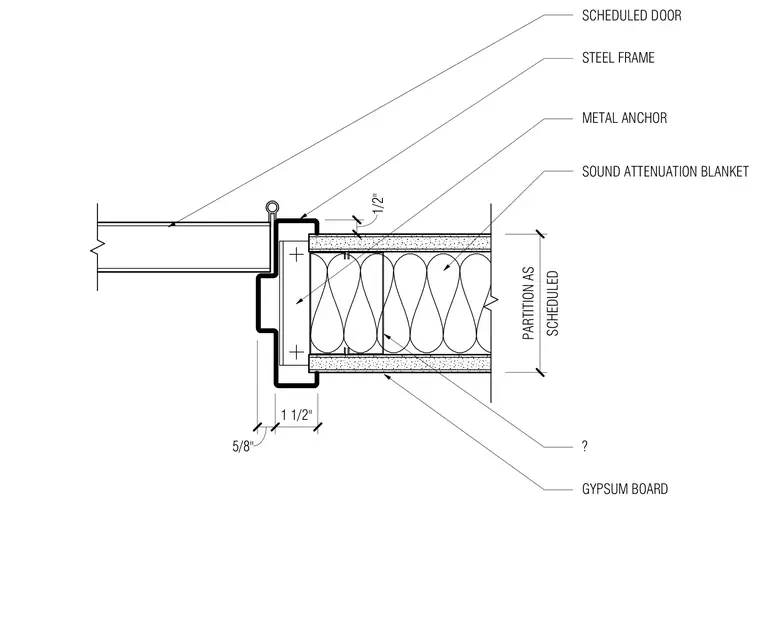

A hollow metal steel frame serves as the door jamb, secured to a scheduled partition with metal anchors. The partition assembly consists of gypsum board layers on each side over metal studs, filled with a sound attenuation blanket. The wall finish and thickness are determined per the finish schedule.
1/2" 5/8" 1 1/2" SCHEDULED PARTITION AS STEEL FRAME METAL ANCHOR ? GYPSUM BOARD SOUND ATTENUATION BLANKET SCHEDULED DOOR
