Architectural · A-H4H24

Cane Bolt Assembly with Louvered Door

Materials

Concrete Steel Metal (misc.)

Elements

Doors Bracing

Connections

Bracing Connection Welded Connection Bolted Connection

About this detail

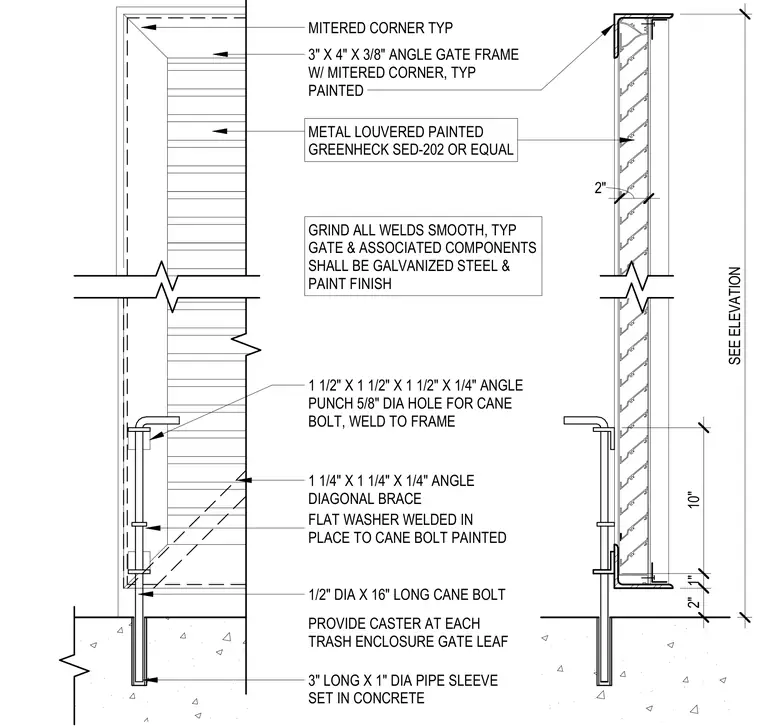

A cane bolt assembly is installed on a louvered metal gate leaf set over a concrete slab. The gate frame is constructed from 3" x 4" x 3/8" painted steel angles with mitered corners. Metal louvers, specified as Greenheck SED-202 or equal, are fitted within the frame, which is stiffened by 1 1/4" x 1 1/4" x 1/4" diagonal angle braces. The cane bolt mechanism uses a 1 1/2" x 1 1/2" x 1 1/2" x 1/4" angle punched with a 5/8" diameter hole and welded to the frame to guide a 1/2" diameter by 16" long cane bolt with a flat washer welded in place. A 1" diameter by 3" long pipe sleeve is set into the concrete floor to receive the cane bolt. All welds are ground smooth, and the entire gate assembly and its components are finished with galvanizing and paint.
