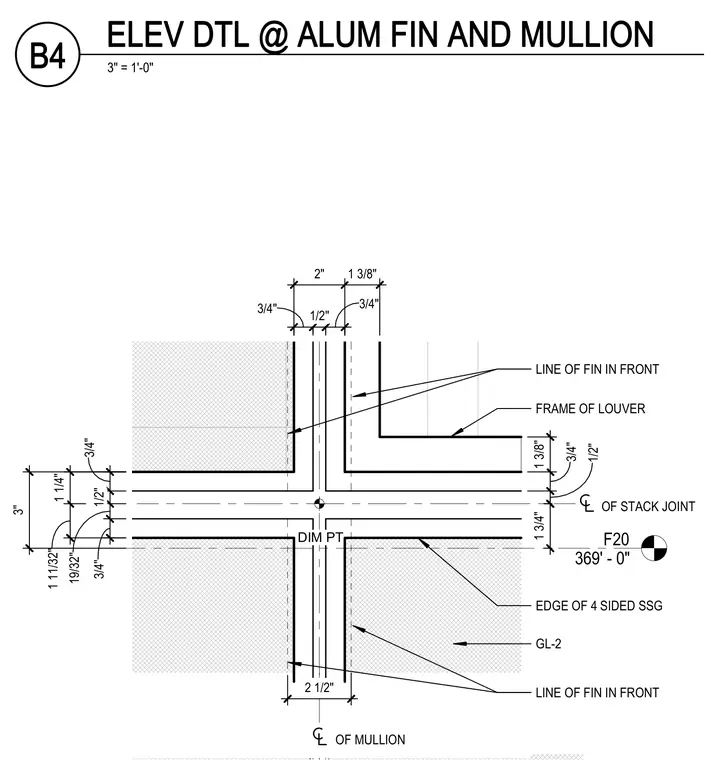

Intersection of an aluminum mullion, stack joint, and aluminum fin with four-sided structural silicone glazing and a louver frame. Horizontal and vertical dimensions establish the precise alignment between the stack joint centerline, the mullion centerline, and the adjacent glass and louver components. Dimensional callouts coordinate the offsets for the exterior aluminum fins projecting in front of the glazing panels. The assembly is detailed at a three-inch scale to control joint tolerances and sightlines for the curtain wall system.
F20 369' - 0" OF MULLION OF STACK JOINT LINE OF FIN IN FRONT LINE OF FIN IN FRONT FRAME OF LOUVER 3 / 4 " 1 9 / 3 2 " 1 / 2 " 3 / 4 " 1 1 1 / 3 2 " 1 1 / 4 " 3 " 1 3 / 4 " 1 3 / 8 " 2 " 3 / 4 " 1 / 2 " 3 / 4 " 2 1 / 2 " 1 / 2 " 3 / 4 " 1 3 / 8 " EDGE OF 4 SIDED SSG GL-2 DIM PT 3" = 1'-0" B4 ELEV DTL @ ALUM FIN AND MULLION
