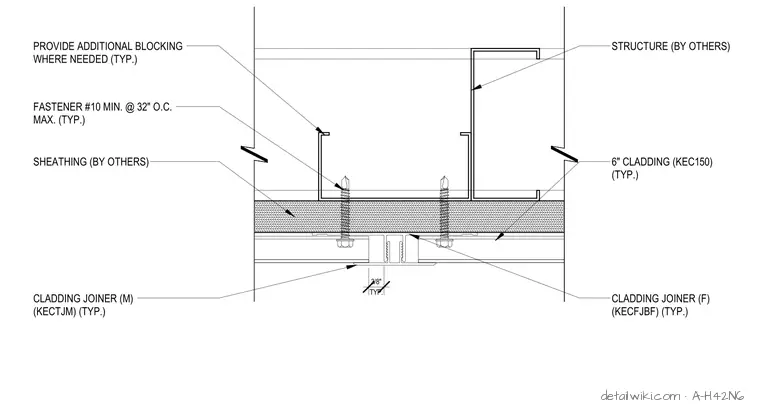

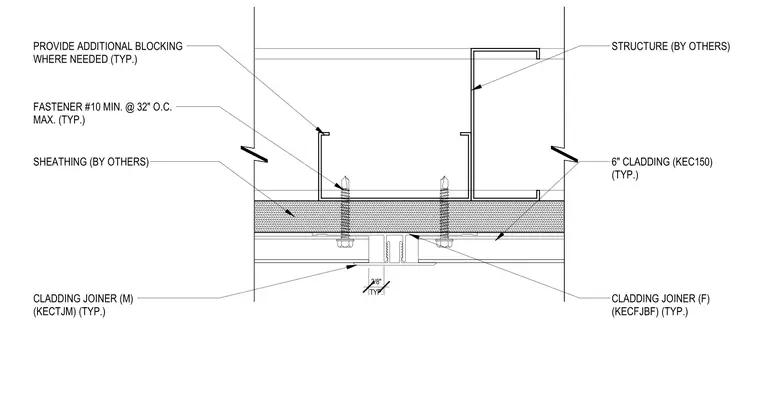

This assembly utilizes a male cladding joiner (KECTJM) and a female cladding joiner (KECFJBF) to connect six-inch Knotwood cladding (KEC150) panels. The joiners are fastened through the sheathing into the structural framing using number ten fasteners spaced at thirty-two inches on center maximum. Additional blocking is provided as needed to support the cladding system. The sheathing and structural framing are provided by others.
