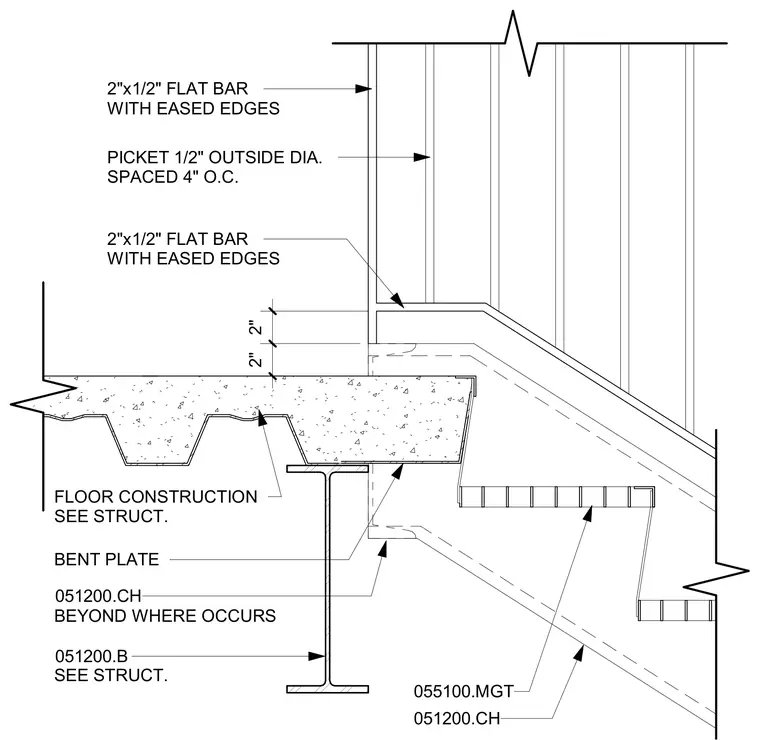

An exterior steel stair connects to the building floor construction with a bent plate bearing on the structural framing. The railing assembly features 2-inch by 1/2-inch flat bars with eased edges forming the top and intermediate rails, supported by 1/2-inch outside diameter pickets spaced at 4 inches on center. Floor construction and structural steel elements are coordinated with structural drawings.
2" 2" 2"x1/2" FLAT BAR WITH EASED EDGES 051200.B SEE STRUCT. 051200.CH PICKET 1/2" OUTSIDE DIA. SPACED 4" O.C. 2"x1/2" FLAT BAR WITH EASED EDGES FLOOR CONSTRUCTION SEE STRUCT. BENT PLATE 051200.CH BEYOND WHERE OCCURS 055100.MGT
